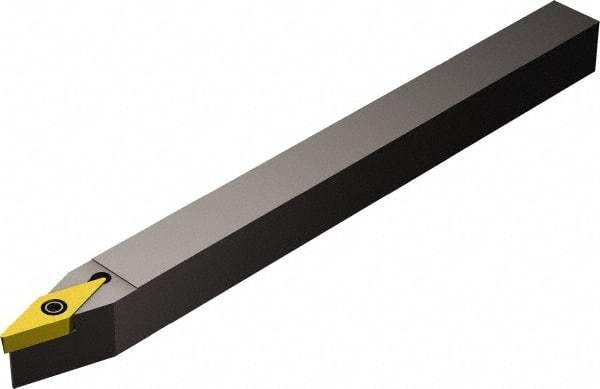

Sandvik Coromant - SVVBN-S, Neutral Cut, 17.5° Lead Angle, 16mm Shank Height x 16mm Shank Width, Neutral Rake Indexable Turning Toolholder - 125mm OAL, VBMT 11 03 04, VBMT 221 Insert Compatibility, Series CoroTurn 107
Item #: 49679897
Brand: Sandvik Coromant
Model #: 5751643
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Neutral |
| Toolholder Style | SVVBN-S |
| Rake | Neutral |
| Series | CoroTurn 107 |
| Lead Angle | 17.5 |
| Shank Width (mm) | 16.00 |
| Shank Width (Decimal Inch) | 0.6299 |
| Shank Height (mm) | 16.00 |
| Shank Height (Decimal Inch) | 0.6299 |
| Overall Length (mm) | 125.00 |
| Overall Length (Decimal Inch) | 4.9213 |
| Insert Compatibility | VBMT 11 03 04; VBMT 221 |
| Insert Holding Method | Screw Clamping |
| Back of Bar to Cutting Edge (mm) | 125.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 4.9213 |
| Center to Cutting Edge (Decimal Inch) | 0.3268 |
| Head Length (mm) | 21.00 |
| Head Length (Decimal Inch) | 0.8268 |
| Toolholder Material | Steel |
