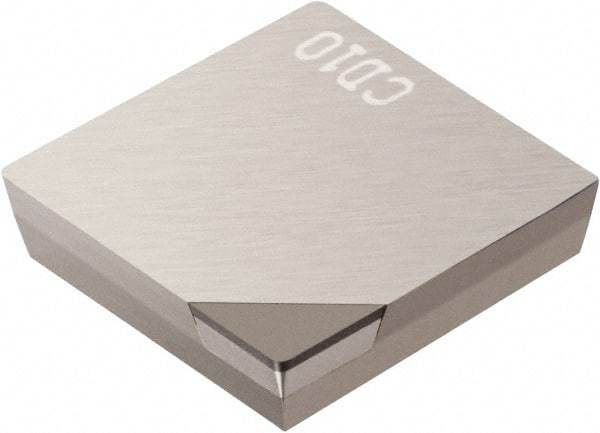

Sandvik Coromant - SPU421 FP Grade CD10 Polycrystalline Diamond (PCD) Turning Insert - Uncoated, 90° Square, 1/2" Inscr Circle, 1/8" Thick, 1/64" Corner Radius
Item #: 49672751
Brand: Sandvik Coromant
Model #: 5751318
Exact Tooling IR#: 04
Features and Benefits
Polycrystalline Diamond (PCD) is a synthetic diamond. It is shock resistant, wear resistant and allows for cutting at high speeds on nonferrous material.
| Product Specifications | |
|---|---|
| Insert Style | SPU |
| Insert Size | 421 |
| Material | Polycrystalline Diamond (PCD) |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Thickness (mm) | 3.17 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (mm) | 0.3969 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | CD10 |
| Coating | Uncoated |
| Chip Breaker | FP |
| ISO Number | SPUN120304FP CD10 |
| Relief Angle | 11 |
| Included Angle | 90 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | T-Max |
| Maximum Depth of Cut (mm) | 4.60 |
| Insert Holding Method | Clamp |
| Cutting Edge Style | Rounded |
| Shape | Square |
