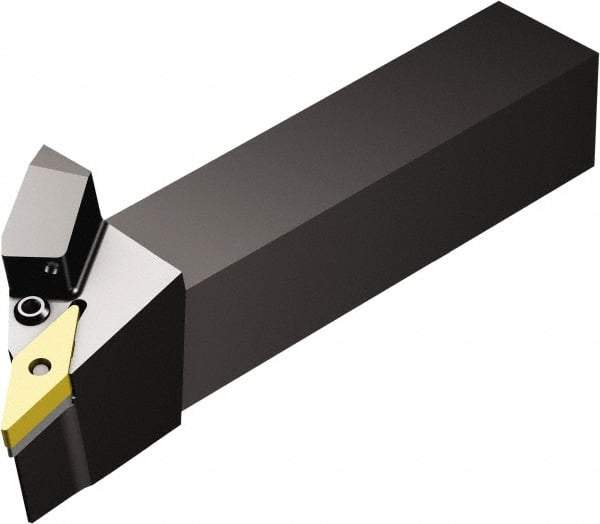

Sandvik Coromant - PVJNR/L..HP, Right Hand Cut, -3° Lead Angle, 16mm Shank Height x 16mm Shank Width, Negative Rake Indexable Turning Toolholder - 100mm OAL, VNMG 16 04 08, VNMG 332 Insert Compatibility, Series T-Max P
Item #: 49652712
Brand: Sandvik Coromant
Model #: 6188482
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | PVJNR/L..HP |
| Rake | Negative |
| Series | T-Max P |
| Lead Angle | -3 |
| Shank Width (mm) | 16.00 |
| Shank Width (Decimal Inch) | 0.6299 |
| Shank Height (mm) | 16.00 |
| Shank Height (Decimal Inch) | 0.6299 |
| Overall Length (mm) | 100.00 |
| Overall Length (Decimal Inch) | 3.9370 |
| Insert Compatibility | VNMG 16 04 08; VNMG 332 |
| Insert Holding Method | Hole & Top Clamp |
| Back of Bar to Cutting Edge (mm) | 100.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 3.9370 |
| Center to Cutting Edge (Decimal Inch) | 0.7874 |
| Head Length (mm) | 41.60 |
| Head Length (Decimal Inch) | 1.6378 |
| Toolholder Material | Steel |
