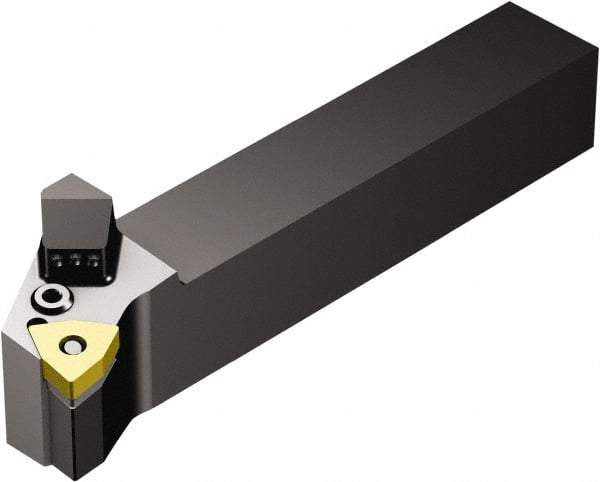

Sandvik Coromant - PWLNR/L..HP, Left Hand Cut, -5° Lead Angle, 25mm Shank Height x 25mm Shank Width, Negative Rake Indexable Turning Toolholder - 150mm OAL, WNMG 08 04 08, WNMG 432 Insert Compatibility, Series T-Max P
Item #: 49615776
Brand: Sandvik Coromant
Model #: 6188487
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Toolholder Style | PWLNR/L..HP |
| Rake | Negative |
| Series | T-Max P |
| Lead Angle | -5 |
| Shank Width (mm) | 25.00 |
| Shank Width (Decimal Inch) | 0.9843 |
| Shank Height (mm) | 25.00 |
| Shank Height (Decimal Inch) | 0.9843 |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Insert Compatibility | WNMG 08 04 08; WNMG 432 |
| Insert Holding Method | Hole & Top Clamp |
| Back of Bar to Cutting Edge (mm) | 150.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 5.9055 |
| Center to Cutting Edge (Decimal Inch) | 1.2598 |
| Head Length (mm) | 36.20 |
| Head Length (Decimal Inch) | 1.4252 |
| Toolholder Material | Steel |
