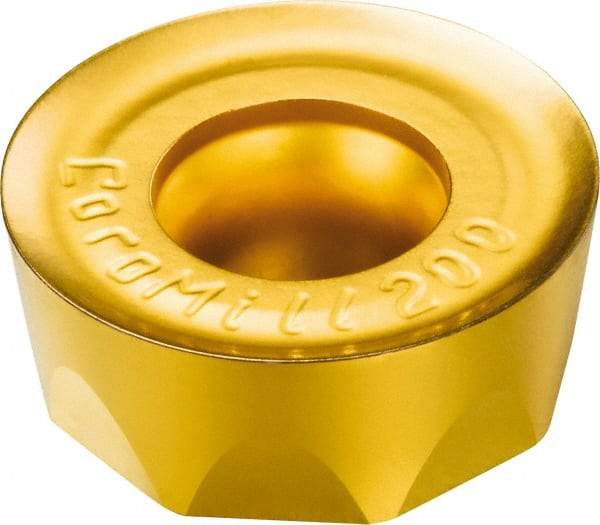

Sandvik Coromant - RCHT1204M0 ML Grade 2030 Carbide Milling Insert - TiAlN/TiN Finish, 4.76mm Thick, 12mm Inscribed Circle
Item #: 49544372
Brand: Sandvik Coromant
Model #: 5739857
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RCHT |
| Insert Size | 1204M0 |
| Material | Carbide |
| Manufacturer's Grade | 2030 |
| Coating | TiAlN/TiN |
| Inscribed Circle (mm) | 12.00 |
| Inscribed Circle (Decimal Inch) | 0.4724 |
| Thickness (mm) | 4.76 |
| Thickness (Decimal Inch) | 0.1875 |
| Hole Diameter (mm) | 4.00 |
| Hole Diameter (Decimal Inch) | 0.1575 |
| Relief Angle | 7.000 |
| Coating Process | PVD |
| Shape | Round |
| Insert Hand | Neutral |
| Chipbreaker | ML |
| Maximum Depth of Cut (mm) | 1.76 |
| Maximum Depth of Cut (Decimal Inch) | 0.0693 |
| Cutting Edge Style | Sharp |
| ISO Number | RCHT 12 04 M0-ML 2030 |
