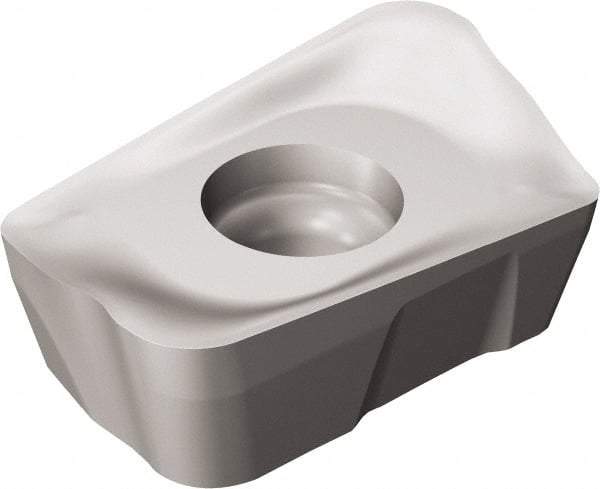

Sandvik Coromant - R390180640 ML Grade 1040 Carbide Milling Insert - TiAlN2 Finish, 6.33mm Thick
Item #: 49544349
Brand: Sandvik Coromant
Model #: 5888569
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | R390 |
| Insert Size | 180640 |
| Material | Carbide |
| Manufacturer's Grade | 1040 |
| Coating | TiAlN2 |
| Width (mm) | 11.00 |
| Width (Decimal Inch) | 0.4331 |
| Thickness (mm) | 6.33 |
| Thickness (Decimal Inch) | 0.2492 |
| Hole Diameter (mm) | 4.15 |
| Hole Diameter (Decimal Inch) | 0.1634 |
| Relief Angle | 11.000 |
| Coating Process | PVD |
| Shape | Rectangle |
| Insert Hand | Right Hand |
| Chipbreaker | ML |
| Maximum Depth of Cut (mm) | 16.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.6299 |
| Cutting Edge Style | Sharp |
| ISO Number | R390-18 06 40H-ML 1040 |
