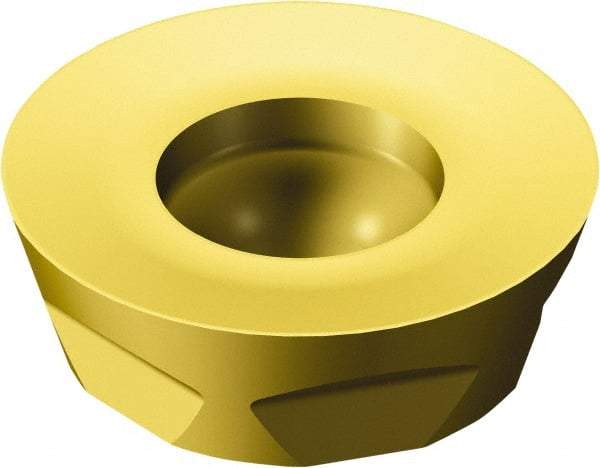

Sandvik Coromant - R3001240 MM Grade 2030 Carbide Milling Insert - TiAlN/TiN Finish, 3.97mm Thick, 12mm Inscribed Circle
Item #: 49544273
Brand: Sandvik Coromant
Model #: 5744517
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | R300 |
| Insert Size | 1240 |
| Material | Carbide |
| Manufacturer's Grade | 2030 |
| Coating | TiAlN/TiN |
| Inscribed Circle (mm) | 12.00 |
| Inscribed Circle (Decimal Inch) | 0.4724 |
| Thickness (mm) | 3.97 |
| Thickness (Decimal Inch) | 0.1563 |
| Hole Diameter (mm) | 4.10 |
| Hole Diameter (Decimal Inch) | 0.1614 |
| Relief Angle | 15.000 |
| Coating Process | PVD |
| Shape | Round |
| Insert Hand | Neutral |
| Chipbreaker | MM |
| Maximum Depth of Cut (mm) | 3.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1181 |
| Cutting Edge Style | Rounded |
| ISO Number | R300-1240E-MM 2030 |
