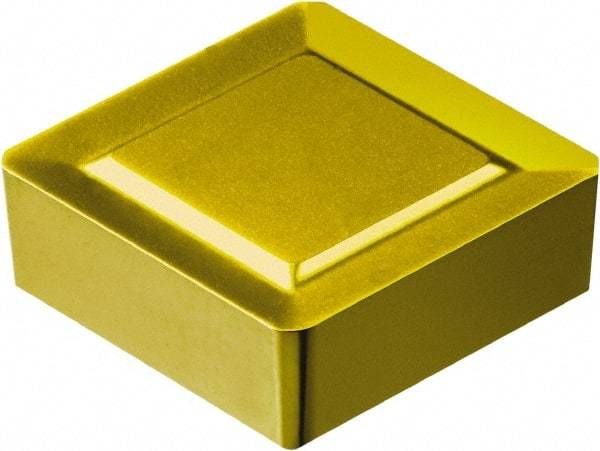

Sandvik Coromant - SBEX1203 Grade K20W Carbide Milling Insert - TiCN/Al2O3/TiN Finish, 3.17mm Thick, 12.7mm Inscribed Circle
Item #: 49543325
Brand: Sandvik Coromant
Model #: 5748816
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SBEX |
| Insert Size | 1203 |
| Material | Carbide |
| Manufacturer's Grade | K20W |
| Coating | TiCN/Al2O3/TiN |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (mm) | 3.17 |
| Thickness (Decimal Inch) | 0.1250 |
| Relief Angle | 5.000 |
| Rake Angle | 8 |
| Rake | Positive |
| Coating Process | CVD |
| Included Angle | 90 |
| Shape | Square |
| Insert Hand | Neutral |
| Maximum Depth of Cut (mm) | 8.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Cutting Edge Style | Rounded |
| ISO Number | SBEX 12 03 ZZ-11 K20W |
