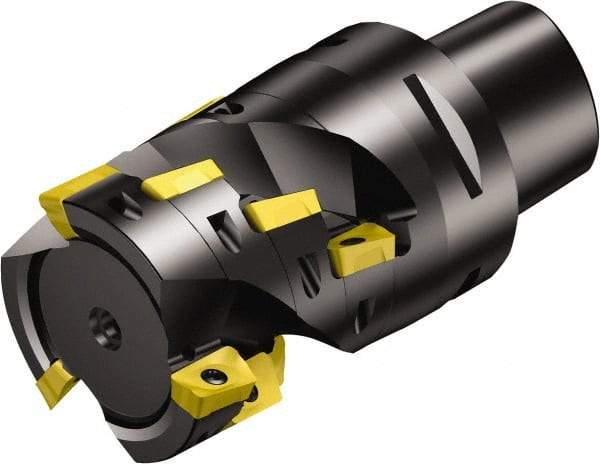

Sandvik Coromant - 15 Inserts, 32mm Cut Diam, 63mm Arbor Diam, 45mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 120.5mm High, R390-11.. Insert Compatibility, Through Coolant, Series CoroMill 390
Item #: 49540552
Brand: Sandvik Coromant
Model #: 5745571
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 32.00 |
| Cutting Diameter (Decimal Inch) | 1.2598 |
| Arbor Hole Diameter (mm) | 63.00 |
| Arbor Hole Diameter (Decimal Inch) | 2.4803 |
| Overall Height (mm) | 120.50 |
| Overall Height (Decimal Inch) | 4.7441 |
| Insert Compatibility | R390-11.. |
| Series | CoroMill 390 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 45.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.7716 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 15 |
| Insert Holding Method | Screw |
| Cutter Style | R390..Cx (LE) |
| Maximum RPM | 21700 |
| ISO Number | R390-032C6-45M |
| Complete Insert Compatibility | R390-11.. |
| Toolholder Material | Steel |
