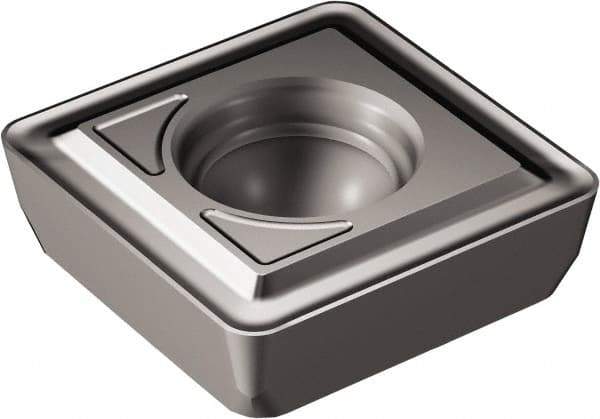

Sandvik Coromant - 880906 GM Grade 4344 Carbide Indexable Drill Insert - PVD (Ti,Al)N2 Finish, Square, 18.6mm Inscribed Circle
Item #: 49531114
Brand: Sandvik Coromant
Model #: 6770754
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 880 |
| Insert Size | 906 |
| Material | Carbide |
| Manufacturer's Grade | 4344 |
| Inscribed Circle (mm) | 18.60 |
| Inscribed Circle (Decimal Inch) | 0.7323 |
| Thickness (mm) | 5.50 |
| Thickness (Decimal Inch) | 0.2165 |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Decimal Inch) | 0.031496 |
| Shape | Square |
| Length (mm) | 26 |
| Length (Decimal Inch) | 1.0236 |
| Hole Diameter (mm) | 4.70 |
| Hole Diameter (Decimal Inch) | 0.1850 |
| Coating | PVD (Ti,Al)N2 |
| Coating Process | PVD |
| Cutting Direction | Right Hand |
| Chipbreaker | GM |
