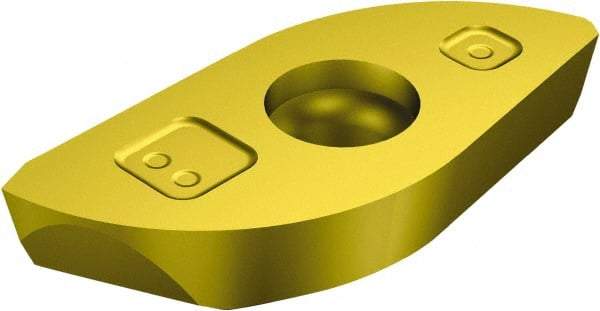

Sandvik Coromant - R2161202 E-M Grade 2040 Carbide Milling Insert - TiCN/Al2O3/TiN Finish, 2.38mm Thick
Item #: 49518814
Brand: Sandvik Coromant
Model #: 5743562
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | R216 |
| Insert Size | 1202 |
| Material | Carbide |
| Manufacturer's Grade | 2040 |
| Coating | TiCN/Al2O3/TiN |
| Thickness (mm) | 2.38 |
| Thickness (Decimal Inch) | 0.0937 |
| Hole Diameter (mm) | 2.90 |
| Hole Diameter (Decimal Inch) | 0.1142 |
| Relief Angle | 9.000 |
| Rake Angle | 0 |
| Rake | Neutral |
| Coating Process | CVD |
| Shape | Round |
| Insert Hand | Right Hand |
| Chipbreaker | E-M |
| Cutting Edge Style | Rounded |
| ISO Number | R216-12 02 E-M 2040 |
