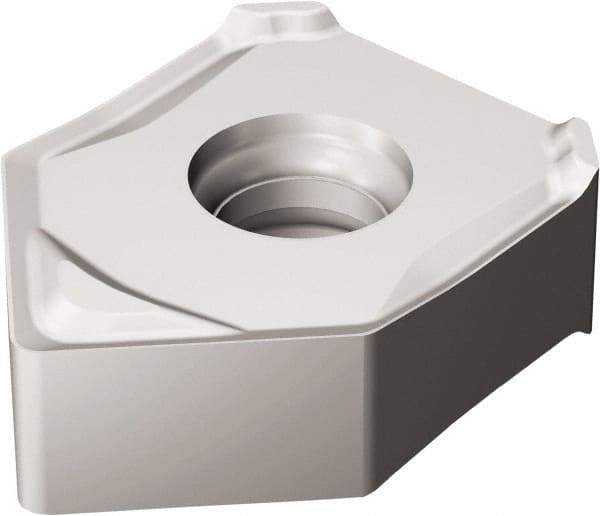

Sandvik Coromant - 345N1305 KW8 Grade H13A Carbide Milling Insert - Uncoated, 5.6mm Thick, 13mm Inscribed Circle
Item #: 49518582
Brand: Sandvik Coromant
Model #: 5861285
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 345N |
| Insert Size | 1305 |
| Material | Carbide |
| Manufacturer's Grade | H13A |
| Coating | Uncoated |
| Inscribed Circle (mm) | 13.00 |
| Inscribed Circle (Decimal Inch) | 0.5118 |
| Thickness (mm) | 5.60 |
| Thickness (Decimal Inch) | 0.2205 |
| Hole Diameter (mm) | 4.80 |
| Hole Diameter (Decimal Inch) | 0.1890 |
| Relief Angle | 0.000 |
| Rake Angle | 22 |
| Rake | Positive |
| Included Angle | 90 |
| Shape | Square |
| Insert Hand | Neutral |
| Chipbreaker | KW8 |
| Maximum Depth of Cut (mm) | 6.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Cutting Edge Style | Chamfered |
| ISO Number | 345N-1305E-KW8 H13A |
