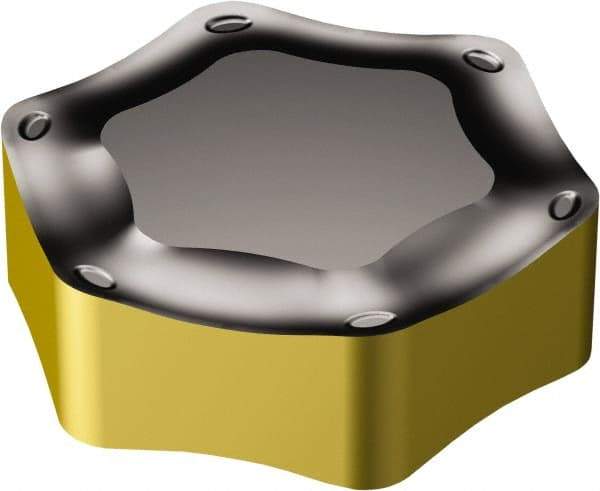

Sandvik Coromant - HNGX090520 KM Grade 3330 Carbide Milling Insert - TiCN/Al2O3/TiN Finish, 5.56mm Thick, 16.2mm Inscribed Circle
Item #: 49518285
Brand: Sandvik Coromant
Model #: 6428172
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | HNGX |
| Insert Size | 090520 |
| Material | Carbide |
| Manufacturer's Grade | 3330 |
| Coating | TiCN/Al2O3/TiN |
| Inscribed Circle (mm) | 16.20 |
| Inscribed Circle (Decimal Inch) | 0.6378 |
| Thickness (mm) | 5.56 |
| Thickness (Decimal Inch) | 0.2189 |
| Relief Angle | 0.000 |
| Rake Angle | 8 |
| Rake | Positive |
| Coating Process | CVD |
| Included Angle | 120 |
| Shape | Hexagon |
| Insert Hand | Neutral |
| Chipbreaker | KM |
| Maximum Depth of Cut (mm) | 3.80 |
| Maximum Depth of Cut (Decimal Inch) | 0.1496 |
| Cutting Edge Style | Rounded |
| ISO Number | HNGX 09 05 20-KM 3330 |
