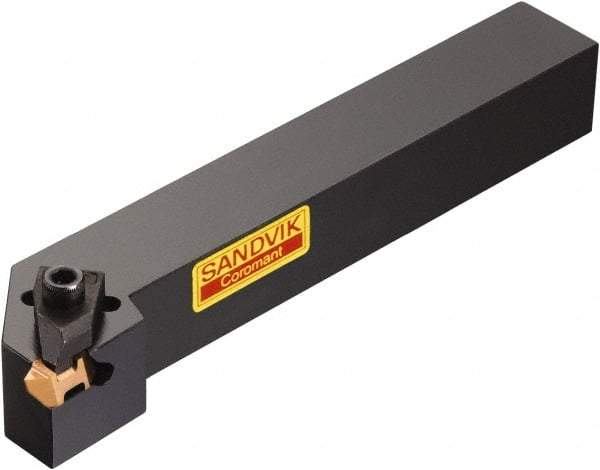

Sandvik Coromant - TLSR/L, Internal or External, Right Hand, 3.17mm Max Depth of Cut, Indexable Grooving Tool Holder - TLG-2125R Insert Compatibility, 9.53mm Shank Height, 9.53mm Shank Width, 152.4mm OAL
Item #: 49515885
Brand: Sandvik Coromant
Model #: 5753625
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal or External |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.1250 |
| Maximum Depth of Cut (mm) | 3.17 |
| Overall Length (mm) | 152.40 |
| Overall Length (Decimal Inch) | 6.0000 |
| Toolholder Style | TLSR/L |
| Insert Compatibility | TLG-2125R |
| Shank Height (mm) | 9.53 |
| Shank Height (Decimal Inch) | 0.3750 |
| Shank Width/Diameter (mm) | 9.53 |
| Shank Width/Diameter (Decimal Inch) | 0.3750 |
| Series | Top Lok |
| Through Coolant | NonThrough Coolant |
| Insert Seat Size | 2 |
| Maximum Hole Depth (Decimal Inch) | 0.8800 |
| Maximum Bore Depth (Decimal Inch) | 0.8800 |
| igrvh Maximum Bore Depth (mm) | 22.35 |
| Back of Bar to Cutting Edge (mm) | 152.40 |
| Back of Bar to Cutting Edge (Decimal Inch) | 6.0000 |
| Center to Cutting Edge (mm) | 9.53 |
| Center to Cutting Edge (Decimal Inch) | 0.3750 |
| Head Length (mm) | 22.35 |
| Head Length (Decimal Inch) | 0.8800 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | TLG-2125R |
