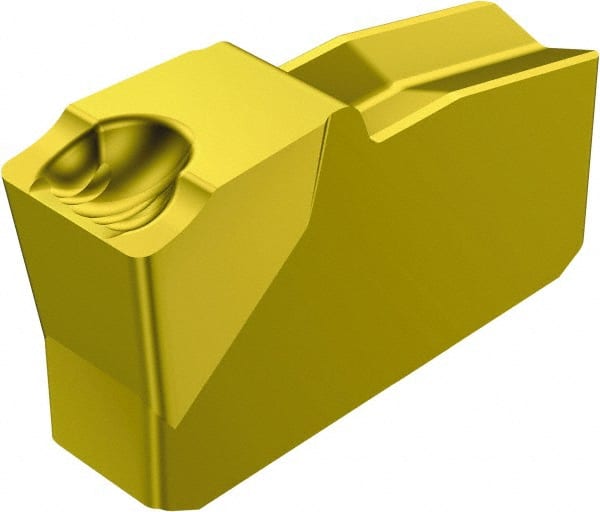

Grooving Insert: N151.2255G 235, Solid Carbide TiCN & TiN Finish, Neutral, 0.1043″ Cutting Width, Series T-Max Q-Cut
Item #: 49509482
Brand: Sandvik Coromant
Model #: 5737192
Product Specifications
| Insert Style | N151.2 |
| Insert Size | 25 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | 235 |
| Cutting Width (Decimal Inch) | 0.1043 |
| Cutting Width (mm) | 2.65 |
| Cutting Height (mm) | 6.79 |
| Insert Hand | Neutral |
| Cutting Height (Decimal Inch) | 0.2672 |
| Series | T-Max Q-Cut |
| Coating Process | CVD |
| Rake Angle | 7.00 |
| Overall Length (Decimal Inch) | 0.2150 |
| Overall Length (mm) | 5.46 |
| Iso Code | N151.2-265-25-5G 235 |
| Insert Thickness (Decimal Inch) | 0.2672 |
| Chip Breaker | 5G |
| Insert Seat Size | 25 |
| Coating/Finish | TiCN; TiN |
