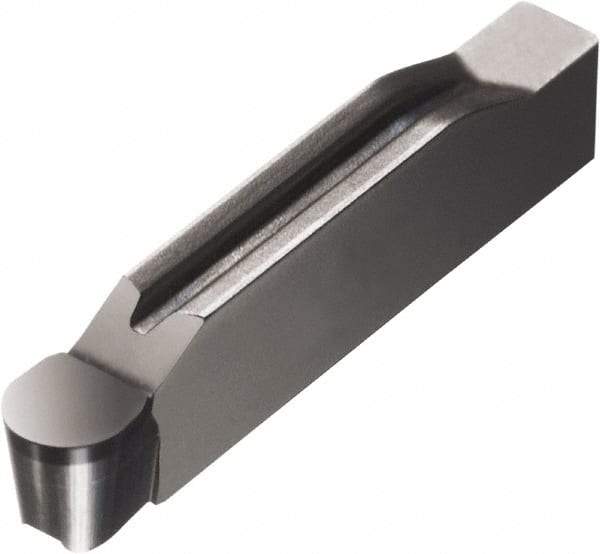

Sandvik Coromant - N123L1, CB20 Grade Cubic Boron Nitride Profiling Insert - Uncoated, 7° Relief Angle, 6.05mm Thick, 4mm Corner Radius
Item #: 49507627
Brand: Sandvik Coromant
Model #: 5736933
Exact Tooling IR#: 04
Features and Benefits
Cubic boron nitride (CBN) is similar in hardness to diamond. It is commonly used for machining hardened steel and related alloys at high temperatures.
| Product Specifications | |
|---|---|
| Material | Cubic Boron Nitride |
| Insert Style | N123 |
| Insert Size | L1 |
| Manufacturer's Grade | CB20 |
| Thickness (mm) | 6.05 |
| Thickness (Decimal Inch) | 0.2382 |
| Corner Radius (mm) | 4.00 |
| Corner Radius (Decimal Inch) | 0.1575 |
| Relief Angle | 7 |
| Coating | Uncoated |
| Insert Length (mm) | 30.50 |
| Insert Length (Decimal Inch) | 1.2008 |
| Chipbreaker | RE |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | CoroCut 1-2 |
| Maximum Depth of Cut (Decimal Inch) | 0.0335 |
| Insert Holding Method | Clamp |
