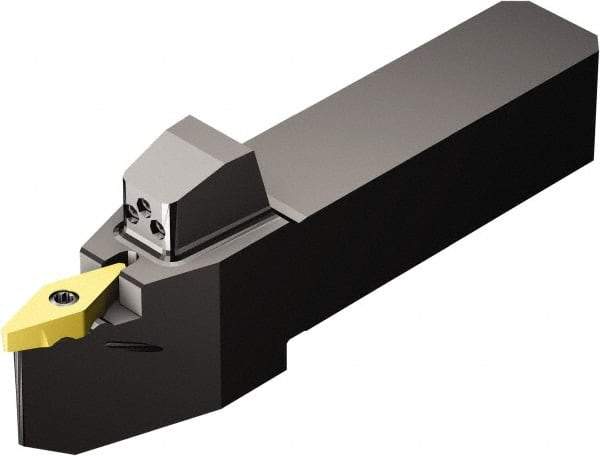

Sandvik Coromant - QS-TR-V..N..HP, Neutral Cut, 17.5° Lead Angle, 19.05mm Shank Height x 19.05mm Shank Width, Neutral Rake Indexable Turning Toolholder - 114mm OAL, TR-VB1308 Insert Compatibility, Series CoroTurn TR
Item #: 49505571
Brand: Sandvik Coromant
Model #: 6766795
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Neutral |
| Toolholder Style | QS-TR-V..N..HP |
| Rake | Neutral |
| Series | CoroTurn TR |
| Lead Angle | 17.5 |
| Shank Width (mm) | 19.05 |
| Shank Width (Decimal Inch) | 0.7500 |
| Shank Height (mm) | 19.05 |
| Shank Height (Decimal Inch) | 0.7500 |
| Overall Length (mm) | 114.00 |
| Overall Length (Decimal Inch) | 4.4882 |
| Insert Compatibility | TR-VB1308 |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (mm) | 114.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 4.4882 |
| Center to Cutting Edge (Decimal Inch) | 0.3979 |
| Head Length (mm) | 64.00 |
| Head Length (Decimal Inch) | 2.5197 |
| Toolholder Material | Steel |
