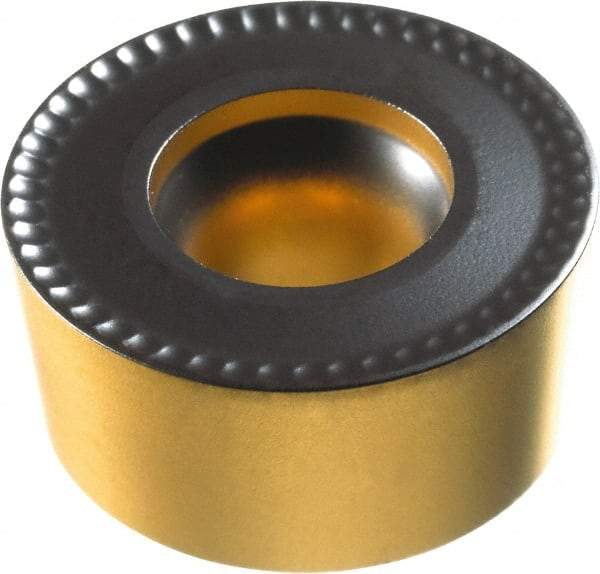

Sandvik Coromant - RCMT2507M0 RCMT Grade 4215 Carbide Turning Insert - TiCN/Al2O3/TiN Finish, Round, 1" Inscr Circle, 5/16" Thick
Item #: 49450885
Brand: Sandvik Coromant
Model #: 5740785
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RCMT |
| Insert Size | 2507M0 |
| Material | Carbide |
| Inscribed Circle (mm) | 25.40 |
| Inscribed Circle (Decimal Inch) | 1.0000 |
| Inscribed Circle (Inch) | 1 |
| Thickness (Inch) | 5/16 |
| Thickness (Decimal Inch) | 0.3126 |
| Thickness (mm) | 7.94 |
| Manufacturer's Grade | 4215 |
| Coating | TiCN/Al2O3/TiN |
| Chip Breaker | RCMT |
| Hole Diameter (mm) | 7.60 |
| Hole Diameter (Decimal Inch) | 0.2992 |
| ISO Number | RCMT2507M04215 |
| Relief Angle | 7 |
| Coating Process | MTCVD |
| Manufacturers Catalog Number | 5740785 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | CoroTurn 107 |
| Insert Holding Method | Screw |
| Shape | Round |
