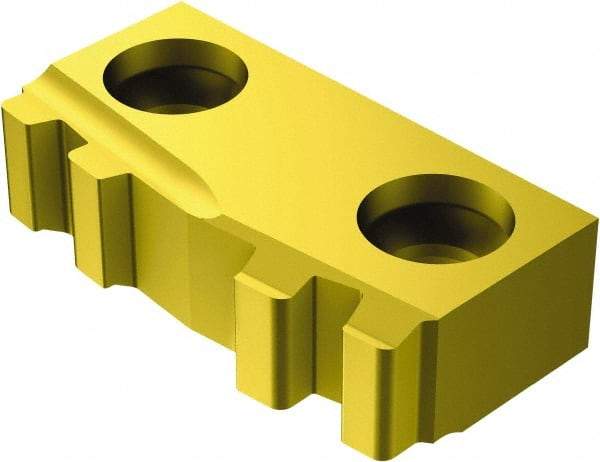

Sandvik Coromant - 166.3924 A Grade 4125, Internal API Buttress Threading Insert - 5 TPI Int Pitch, Right Hand Insert, TiAlN/TiN Finish, Carbide
Item #: 49444813
Brand: Sandvik Coromant
Model #: 5742308
Exact Tooling IR#: 04
Features and Benefits
TiAlN/TiN is a multilayer coating that combines the high hardness of TiN and the heat resistance of TiAlN. It is commonly used on softer materials in general purpose applications.
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 166.39 |
| Insert Size | 24 |
| Thread Type | Internal |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Thread Standard | API Buttress |
| Manufacturer's Grade | 4125 |
| Internal Pitch/TPI | 5 TPI |
| Coating | TiAlN/TiN |
| Material | Carbide |
| Coating Process | PVD |
| ISO Number | R16639L24BU120504125 |
| Thickness (mm) | 6.35 |
| Thickness (Decimal Inch) | 0.2500 |
| Series | T-Max Twin-Lock |
| Chipbreaker | A |
| Manufacturers Catalog Number | 5742308 |
