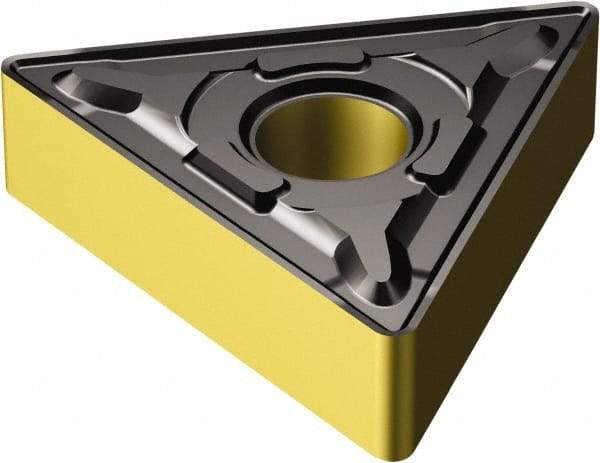

Sandvik Coromant - TNMG654 PR Grade 4325 Carbide Turning Insert - TiCN/Al2O3/TiN Finish, 60° Triangle, 3/4" Inscr Circle, 5/16" Thick, 1/16" Corner Radius
Item #: 49424500
Brand: Sandvik Coromant
Model #: 6532448
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TNMG |
| Insert Size | 654 |
| Material | Carbide |
| Length (mm) | 33.00 |
| Length (Decimal Inch) | 1.2992 |
| Inscribed Circle (mm) | 19.00 |
| Inscribed Circle (Decimal Inch) | 0.7480 |
| Inscribed Circle (Inch) | 3/4 |
| Thickness (Inch) | 5/16 |
| Thickness (Decimal Inch) | 0.3126 |
| Thickness (mm) | 7.94 |
| Corner Radius (Inch) | 1/16 |
| Corner Radius (mm) | 1.60 |
| Corner Radius (Decimal Inch) | 0.0630 |
| Manufacturer's Grade | 4325 |
| Coating | TiCN/Al2O3/TiN |
| Chip Breaker | PR |
| Hole Diameter (mm) | 7.93 |
| Hole Diameter (Decimal Inch) | 0.3122 |
| ISO Number | TNMG330716PR4325 |
| Relief Angle | 0 |
| Coating Process | MTCVD |
| Manufacturers Catalog Number | 6532448 |
| Primary Workpiece Material | P |
| Included Angle | 60 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | T-Max P |
| Maximum Depth of Cut (mm) | 31.40 |
| Maximum Depth of Cut (Decimal Inch) | 1.2362 |
| Insert Holding Method | Pin & Clamp |
| Shape | Triangle |
