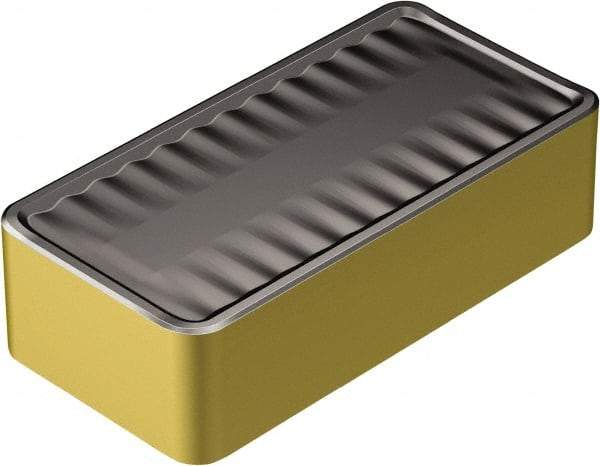

Sandvik Coromant - LNMX501432 XH Grade 4325 Carbide Turning Insert - TiCN/Al2O3/TiN Finish, 90° Rectangle, 14.2mm Thick, 1/8" Corner Radius
Item #: 49418189
Brand: Sandvik Coromant
Model #: 6532310
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | LNMX |
| Insert Size | 501432 |
| Material | Carbide |
| Length (mm) | 50.00 |
| Length (Decimal Inch) | 1.9685 |
| Thickness (Decimal Inch) | 0.5591 |
| Thickness (mm) | 14.20 |
| Corner Radius (Inch) | 1/8 |
| Corner Radius (mm) | 3.20 |
| Corner Radius (Decimal Inch) | 0.1260 |
| Manufacturer's Grade | 4325 |
| Coating | TiCN/Al2O3/TiN |
| Chip Breaker | XH |
| ISO Number | LNMX501432XH4325 |
| Relief Angle | 0 |
| Coating Process | MTCVD |
| Manufacturers Catalog Number | 6532310 |
| Primary Workpiece Material | P |
| Included Angle | 90 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | T-Max P |
| Maximum Depth of Cut (mm) | 34.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.3386 |
| Insert Holding Method | Lever Lock |
| Shape | Rectangle |
