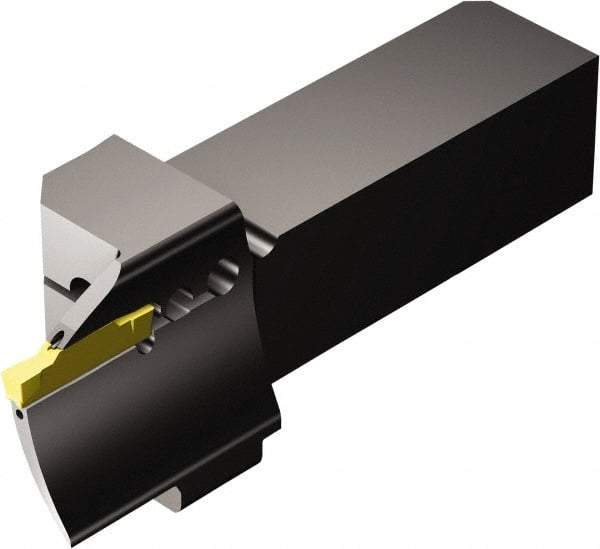

Sandvik Coromant - QS, Left Hand, 0.55" Max Depth of Cut, Indexable Grooving Tool Holder - N123G2-0300-0003-TF Insert Compatibility, 3/4" Shank Height, 3/4" Shank Width, 3.9713" OAL, Through Coolant
Item #: 49348600
Brand: Sandvik Coromant
Model #: 6537489
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Type | Face Grooving |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.5500 |
| Overall Length (Decimal Inch) | 3.9713 |
| Toolholder Style | QS |
| Insert Compatibility | N123G2-0300-0003-TF |
| Shank Height (Decimal Inch) | 0.7500 |
| Shank Height (Inch) | 3/4 |
| Shank Width/Diameter (Inch) | 3/4 |
| Shank Width/Diameter (Decimal Inch) | 0.7500 |
| Series | CoroCut 1-2 |
| Through Coolant | Coolant Through |
| Multi-Use Tool | No |
| Insert Seat Size | G |
| Minimum Hole Diameter (Decimal Inch) | 1.3386 |
| Maximum Bore Depth (Decimal Inch) | 2.2138 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.7697 |
| Maximum Groove Outside Diameter (mm) | 44.00 |
| Minimum Axial Groove Inside Diameter(mm) | 34.00 |
| Head Length (Decimal Inch) | 0.5500 |
| Manufacturers Catalog Number | 6537489 |
| Toolholder Material | Steel |
| Shank Diameter (Decimal Inch) | 0.7500 |
