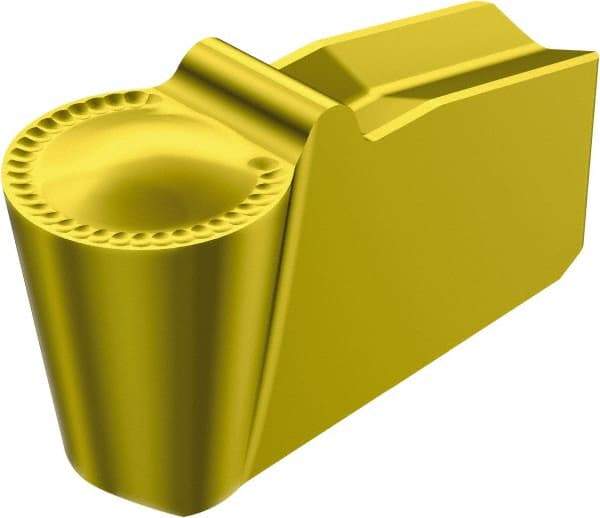

Sandvik Coromant - 30N151.2-5P Grade 235, Carbide Grooving Insert - 1.3mm Max Depth of Cut, Neutral, 1.5mm Corner Radius, TiCN/TiN Finish
Item #: 49346737
Brand: Sandvik Coromant
Model #: 5736826
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | N151.2-5P |
| Insert Size | 30 |
| Material | Carbide |
| Maximum Depth of Cut (mm) | 1.30 |
| Maximum Depth of Cut (Decimal Inch) | 0.0512 |
| Manufacturer's Grade | 235 |
| Coating | TiCN/TiN |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Relief Angle | 7 |
| Corner Radius (mm) | 1.50 |
| Corner Radius (Decimal Inch) | 0.0591 |
| Coating Process | CVD |
| Series | T-Max Q-Cut |
| Manufacturers Catalog Number | 5736826 |
