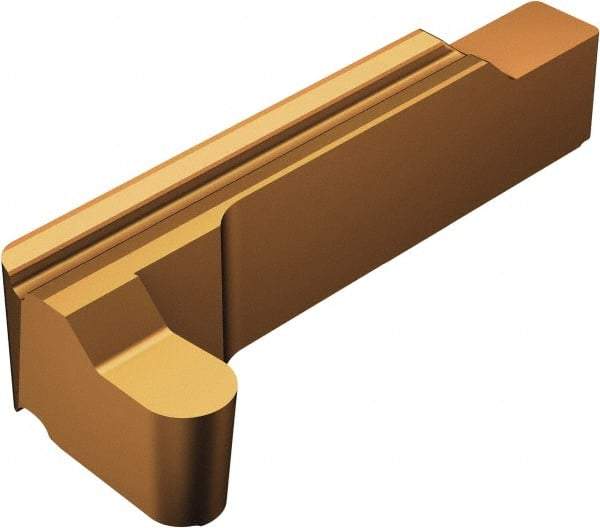

Sandvik Coromant - 0400LG123 Grade 1115, 4mm Cutting Width Carbide Grooving Insert - 9mm Max Depth of Cut, Left Hand, 2mm Corner Radius, TiAlN/AlCr2O3 Finish
Item #: 49346463
Brand: Sandvik Coromant
Model #: 5732332
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | LG123 |
| Insert Size | 0400 |
| Material | Carbide |
| Cutting Width (mm) | 4.00 |
| Cutting Width (Decimal Inch) | 0.1575 |
| Maximum Depth of Cut (mm) | 9.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3543 |
| Manufacturer's Grade | 1115 |
| Coating | TiAlN/AlCr2O3 |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Relief Angle | 7 |
| Corner Radius (mm) | 2.00 |
| Corner Radius (Decimal Inch) | 0.0787 |
| Coating Process | PVD |
| Overall Length (mm) | 30.90 |
| Overall Length (Decimal Inch) | 1.2165 |
| Series | CoroCut 1-2 |
| Manufacturers Catalog Number | 5732332 |
