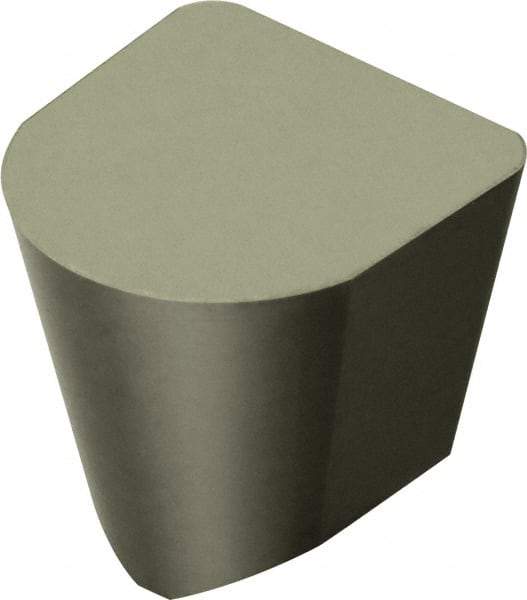

Sandvik Coromant - 060608CSGX Grade 670, 6.35mm Cutting Width Ceramic Grooving Insert - Neutral, 0.79mm Corner Radius, Uncoated
Item #: 49346190
Brand: Sandvik Coromant
Model #: 5725971
Exact Tooling IR#: 04
Features and Benefits
Ceramic is a highly heat resistant material composed of aluminum oxide and silicon nitride. It is commonly used at high speeds on steel, cast and ductile iron and high temperature alloys.
| Product Specifications | |
|---|---|
| Insert Style | CSGX |
| Insert Size | 060608 |
| Material | Ceramic |
| Cutting Width (mm) | 6.35 |
| Cutting Width (Decimal Inch) | 0.2500 |
| Manufacturer's Grade | 670 |
| Coating | Uncoated |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Relief Angle | 11 |
| Insert Seat Size | 06 |
| Multi-Use Tool | Yes |
| Multi-Use Application | Parting |
| Corner Radius (mm) | 0.79 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Series | T-Max |
| ISO Number | CSGX060608T01020670 |
| Manufacturers Catalog Number | 5725971 |
| Insert Thickness (Decimal Inch) | 0.2500 |
| Insert Thickness (mm) | 6.3500 |
