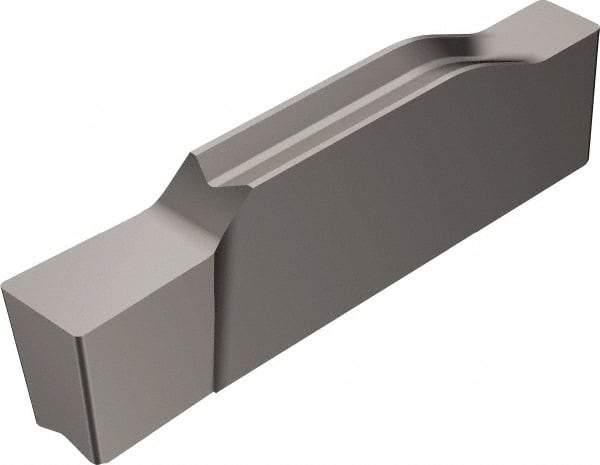

Sandvik Coromant - J1N123 S Grade 7015, 6mm Cutting Width Carbide Grooving Insert - Neutral, 0.4mm Corner Radius, Uncoated
Item #: 49345754
Brand: Sandvik Coromant
Model #: 5736229
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | N123 |
| Insert Size | J1 |
| Material | Carbide |
| Cutting Width (mm) | 6.00 |
| Cutting Width (Decimal Inch) | 0.2362 |
| Manufacturer's Grade | 7015 |
| Coating | Uncoated |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Lead Angle | 0 |
| Relief Angle | 7 |
| Insert Seat Size | J |
| Chipbreaker | S |
| Multi-Use Tool | Yes |
| Multi-Use Application | Parting |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Coating Process | PVD |
| Series | CoroCut 1-2 |
| ISO Number | N123J1060004S010257015 |
| Manufacturers Catalog Number | 5736229 |
| Insert Thickness (Decimal Inch) | 0.1713 |
| Insert Thickness (mm) | 4.3500 |
