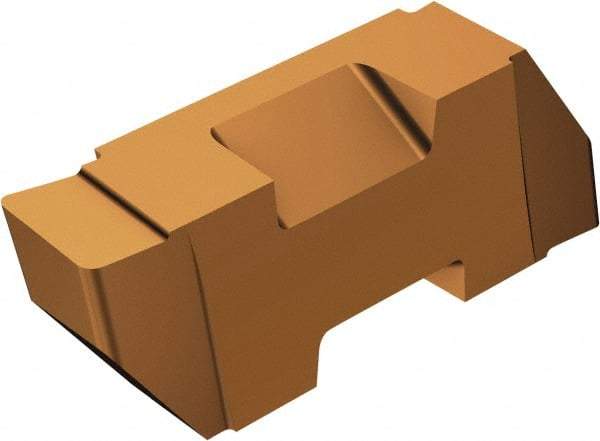

Sandvik Coromant - 2058TLGP Grade 1125, 0.058" Cutting Width Carbide Grooving Insert - 0.05" Max Depth of Cut, Left Hand, 0.19mm Corner Radius, TiAlN Finish
Item #: 49345523
Brand: Sandvik Coromant
Model #: 5753370
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TLGP |
| Insert Size | 2058 |
| Material | Carbide |
| Cutting Width (Decimal Inch) | 0.0580 |
| Maximum Depth of Cut (Decimal Inch) | 0.0500 |
| Manufacturer's Grade | 1125 |
| Coating | TiAlN |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Relief Angle | 10 |
| Insert Seat Size | 2 |
| Multi-Use Tool | Yes |
| Multi-Use Application | Parting |
| Corner Radius (mm) | 0.19 |
| Corner Radius (Decimal Inch) | 0.0075 |
| Coating Process | PVD |
| Series | Top Lok |
| ISO Number | TLGP2058L1125 |
| Manufacturers Catalog Number | 5753370 |
| Insert Thickness (Decimal Inch) | 0.2190 |
| Insert Thickness (mm) | 5.5626 |
