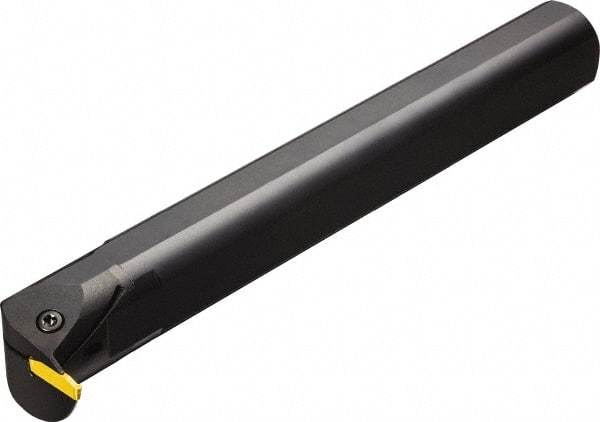

Sandvik Coromant - AG123, Internal, Right Hand, 13mm Max Depth of Cut, 5mm Max Groove Width, Indexable Grooving Tool Holder - N123..GM Insert Compatibility, 1.85" Shank Height, 13.7795" OAL, Through Coolant
Item #: 49343858
Brand: Sandvik Coromant
Model #: 5737469
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.5118 |
| Maximum Depth of Cut (mm) | 13.00 |
| Maximum Groove Width (mm) | 5.00 |
| Maximum Groove Width (Decimal Inch) | 0.1969 |
| Overall Length (Decimal Inch) | 13.7795 |
| Toolholder Style | AG123 |
| Insert Compatibility | N123..GM |
| Shank Height (Decimal Inch) | 1.8500 |
| Series | CoroCut 1-2 |
| Through Coolant | Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Parting |
| Coolant Hole Diameter (Decimal Inch) | 0.4720 |
| Insert Holding Method | Screw |
| Insert Seat Size | J |
| Minimum Hole Diameter (Decimal Inch) | 2.3622 |
| Maximum Hole Depth (Decimal Inch) | 2.5590 |
| Maximum Bore Depth (Decimal Inch) | 2.5590 |
| igrvh Maximum Bore Depth (mm) | 65.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.9250 |
| Center to Cutting Edge (Decimal Inch) | 1.5059 |
| Head Length (Decimal Inch) | 2.5591 |
| Shank Length (Decimal Inch) | 11.2205 |
| Manufacturers Catalog Number | RAG123J051-32B |
| Height to Shank Top (Decimal Inch) | 1.8500 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | L123J2-0500-0502-CM; L123J2-0500-0504-CR; N123J1-0500-0002-CM; N123J1-0500-0004-CR; N123J1-0600-0002-GE; N123J1-060004S01025; N123J1-0600-RE; N123J1-0600-RM; N123J1-0600-RO; N123J1-0600-RS; N123J1-0600S01025; N123J1-0635-RE; N123J2-0475-0003-GM; N123J2-05 |
| Minimum Bore Diameter (Decimal Inch) | 2.3620 |
| Minimum BoreDiameter (mm) | 60.00 |
| Shank Diameter (Decimal Inch) | 2.0000 |
