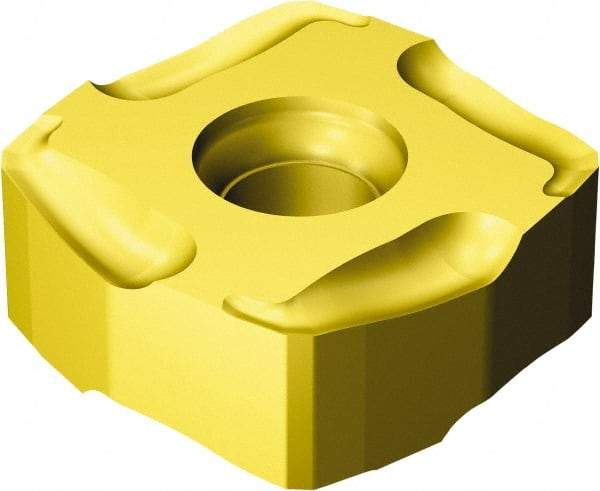

Sandvik Coromant - L3651505 KM Grade K20W Carbide Milling Insert - TiCN/Al2O3/TiN Finish, 5.56mm Thick, 15mm Inscribed Circle, 0.3mm Corner Radius
Item #: 49340839
Brand: Sandvik Coromant
Model #: 5735333
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | L365 |
| Insert Size | 1505 |
| Material | Carbide |
| Manufacturer's Grade | K20W |
| Coating | TiCN/Al2O3/TiN |
| Inscribed Circle (mm) | 15.00 |
| Inscribed Circle (Decimal Inch) | 0.5906 |
| Thickness (mm) | 5.56 |
| Thickness (Decimal Inch) | 0.2189 |
| Corner Radius (Decimal Inch) | 0.0118 |
| Corner Radius (mm) | 0.30 |
| Hole Diameter (mm) | 4.60 |
| Hole Diameter (Decimal Inch) | 0.1811 |
| Relief Angle | 0.000 |
| Coating Process | CVD |
| Shape | Round |
| Insert Hand | Left Hand |
| Chipbreaker | KM |
| Maximum Depth of Cut (mm) | 6.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Cutting Edge Style | Negative Land |
| Manufacturers Catalog Number | 5735333 |
| ISO Number | L365-1505ZNE-KM K20W |
