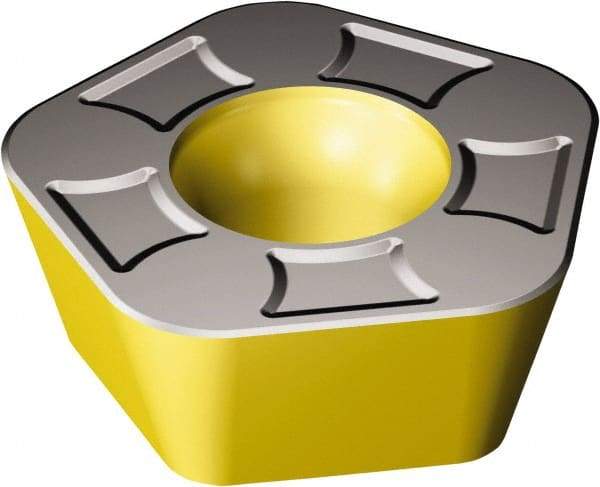

Sandvik Coromant - 419N140530 KH Grade 3330 Carbide Milling Insert - TiCN/Al2O3/TiN Finish, 5.56mm Thick, 14mm Inscribed Circle, 3mm Corner Radius
Item #: 49339757
Brand: Sandvik Coromant
Model #: 6428141
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 419N |
| Insert Size | 140530 |
| Material | Carbide |
| Manufacturer's Grade | 3330 |
| Coating | TiCN/Al2O3/TiN |
| Inscribed Circle (mm) | 14.00 |
| Inscribed Circle (Decimal Inch) | 0.5512 |
| Thickness (mm) | 5.56 |
| Thickness (Decimal Inch) | 0.2189 |
| Corner Radius (Decimal Inch) | 0.1181 |
| Corner Radius (mm) | 3.00 |
| Hole Diameter (mm) | 5.50 |
| Hole Diameter (Decimal Inch) | 0.2165 |
| Relief Angle | 15.000 |
| Rake Angle | -15 |
| Rake | Negative |
| Coating Process | CVD |
| Included Angle | 108 |
| Shape | Pentagon |
| Insert Hand | Neutral |
| Chipbreaker | KH |
| Maximum Depth of Cut (mm) | 2.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0787 |
| Cutting Edge Style | ER Treated |
| Manufacturers Catalog Number | 6428141 |
| ISO Number | 419N-140530M-KH 3330 |
