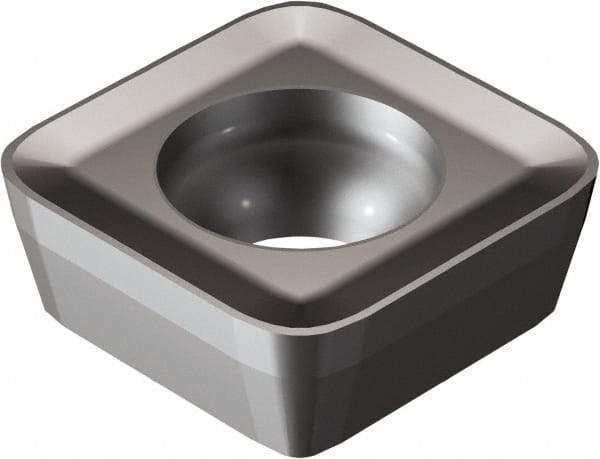

Sandvik Coromant - R210090414 KM Grade 3040 Carbide Milling Insert - TiCN/Al2O3 Finish, 4.76mm Thick, 9mm Inscribed Circle, 1.4mm Corner Radius
Item #: 49339179
Brand: Sandvik Coromant
Model #: 5742716
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | R210 |
| Insert Size | 090414 |
| Material | Carbide |
| Manufacturer's Grade | 3040 |
| Coating | TiCN/Al2O3 |
| Inscribed Circle (mm) | 9.00 |
| Inscribed Circle (Decimal Inch) | 0.3543 |
| Thickness (mm) | 4.76 |
| Thickness (Decimal Inch) | 0.1874 |
| Corner Radius (Decimal Inch) | 0.0551 |
| Corner Radius (mm) | 1.40 |
| Hole Diameter (mm) | 4.20 |
| Hole Diameter (Decimal Inch) | 0.1654 |
| Relief Angle | 7.000 |
| Coating Process | CVD |
| Included Angle | 90 |
| Shape | Square |
| Insert Hand | Neutral |
| Chipbreaker | KM |
| Maximum Depth of Cut (mm) | 1.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0394 |
| Cutting Edge Style | ER Treated |
| Manufacturers Catalog Number | 5742716 |
| ISO Number | R210-09 04 14E-KM 3040 |
