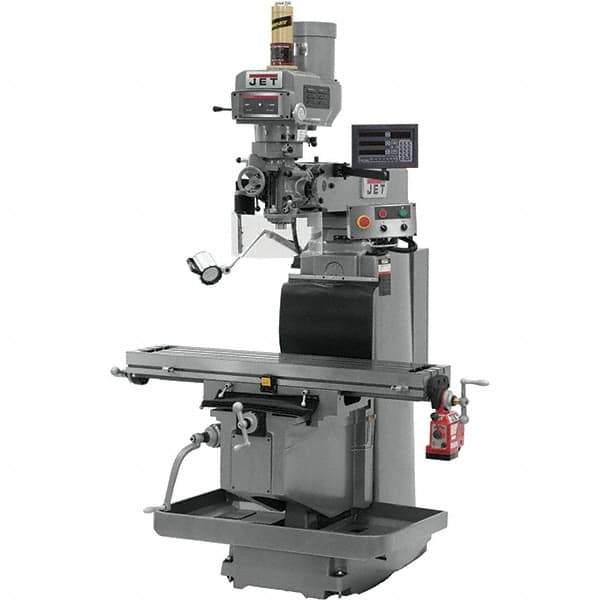

Jet - 54" Long x 12" Wide, 3 Phase Newall DP700 CNC Milling Machine - Variable Speed Pulley Control, R8 Taper, 5 hp - Industrial Tool & Supply

Jet - 54" Long x 12" Wide, 3 Phase Newall DP700 CNC Milling Machine - Variable Speed Pulley Control, R8 Taper, 5 hp


Item #: 48839906
Brand: Jet
Model #: 698127
Exact Tooling IR#: 04

Features and Benefits

Variable speed pulleys are driven by a V-shaped belt system and a variable speed assembly that regulates an infinite speed range change by the turn of a dial.
Three-phase refers to three individual lines (coils) that connect to and run voltage through the motor. Each line alternates in a sequence as it reaches its voltage peak. They provide a more stable flow of voltage and more horsepower to the equipment.
Product Specifications
Spindle Speed Control Variable Speed Pulley
CNC Controller Brand Newall
CNC Controller Model DP700
Table Length (Inch) 54
Table Width (Inch) 12
Phase 3
Longitudinal Travel (Inch) 28-1/4
Cross Travel (Decimal Inch) 13.3333
Knee Travel (Inch) 19-1/4
Maximum Spindle Speed (RPM) 3800.00
Minimum Spindle Speed (RPM) 80.00
Spindle Travel Length (Inch) 5
Spindle Taper Size R8
Quill Diameter (Inch) 3-3/8
Maximum Spindle To Column Distance (Decimal Inch) 26.5000
Table Load Capacity (Lb.) 925.00
Number of T-Slots 3
Left-Hand Head Tilt (Degrees) 90.00
Right-Hand Head Tilt (Degrees) 90.00
Forward Head Tilt (Degrees) 45.00
Backward Head Tilt (Degrees) 45.00
Horsepower (HP) 5.00
Voltage 230/460
Overall Length (Inch) 104-1/4
Overall Height (Inch) 92-1/8
Overall Depth (Inch) 79-7/8
Certification CSA/CUS
Warranty 2 Year
