Jet - CNC Milling Machines Spindle Speed Control: Variable Speed Pulley CNC Controller Brand: Acu-Rite - Industrial Tool & Supply

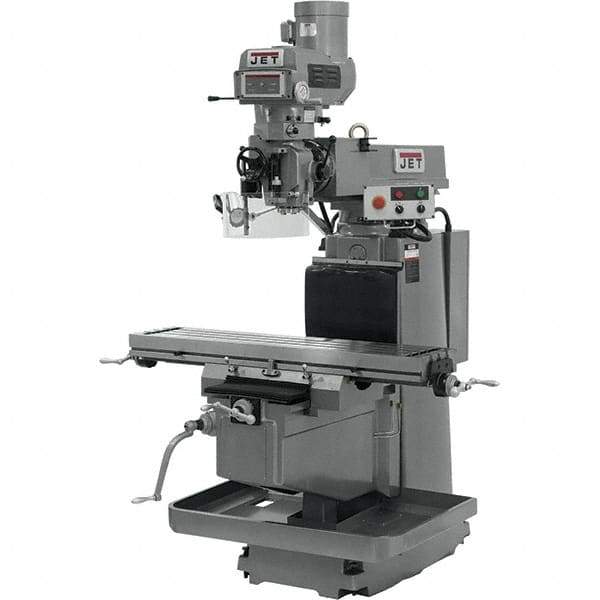

Jet - CNC Milling Machines Spindle Speed Control: Variable Speed Pulley CNC Controller Brand: Acu-Rite


Item #: 48839757
Brand: Jet
Model #: 691942
Exact Tooling IR#: 04

Features and Benefits

Variable speed pulleys are driven by a V-shaped belt system and a variable speed assembly that regulates an infinite speed range change by the turn of a dial.
Three-phase refers to three individual lines (coils) that connect to and run voltage through the motor. Each line alternates in a sequence as it reaches its voltage peak. They provide a more stable flow of voltage and more horsepower to the equipment.

Product Specifications

CNC Milling Machines; Spindle Speed Control: Variable Speed Pulley ; CNC Controller Brand: Acu-Rite ; CNC Controller Model: G-2 ; Table Length (Inch): 54 ; Table Width (Inch): 12 ; Phase: 3
Spindle Speed Control Variable Speed Pulley
CNC Controller Brand Acu-Rite
CNC Controller Model G-2
Table Length (Inch) 54
Table Width (Inch) 12
Phase 3
Longitudinal Travel (Inch) 28-1/4
Cross Travel (Decimal Inch) 13.3333
Knee Travel (Inch) 19-1/4
Maximum Spindle Speed (RPM) 3800.00
Minimum Spindle Speed (RPM) 80.00
Spindle Travel Length (Inch) 5
Spindle Taper Size NT40
Quill Diameter (Decimal Inch) 4.1300
Maximum Spindle To Column Distance (Decimal Inch) 26.5000
Table Load Capacity (Lb.) 925.00
Number of T-Slots 3
Left-Hand Head Tilt (Degrees) 90.00
Right-Hand Head Tilt (Degrees) 90.00
Horsepower (HP) 5.00
Voltage 230/460
Overall Length (Inch) 104-1/4
Overall Height (Inch) 92-1/8
Overall Depth (Inch) 79-7/8
Certification CSA/CUS
Warranty 2 Year
$57,445.49
