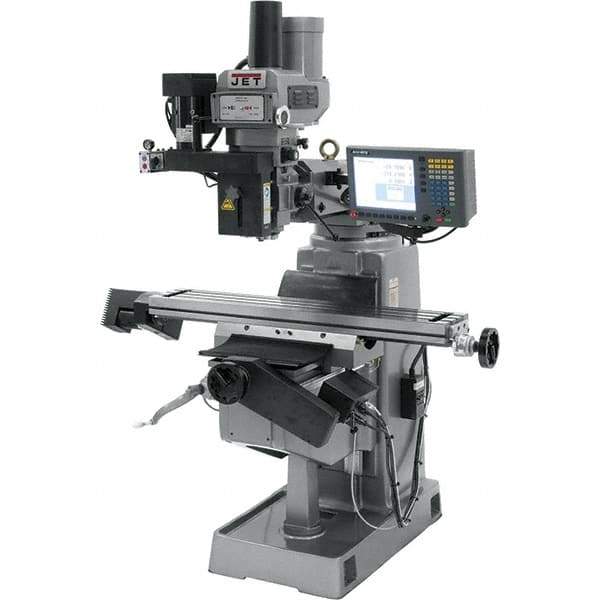

Jet - CNC Milling Machines Spindle Speed Control: Variable Speed Pulley CNC Controller Brand: Acu-Rite
Item #: 48839732
Brand: Jet
Model #: 690949
Exact Tooling IR#: 04
Features and Benefits
Variable speed pulleys are driven by a V-shaped belt system and a variable speed assembly that regulates an infinite speed range change by the turn of a dial.
Three-phase refers to three individual lines (coils) that connect to and run voltage through the motor. Each line alternates in a sequence as it reaches its voltage peak. They provide a more stable flow of voltage and more horsepower to the equipment.
Product Specifications
CNC Milling Machines; Spindle Speed Control: Variable Speed Pulley ; CNC Controller Brand: Acu-Rite ; CNC Controller Model: G-2 ; Table Length (Inch): 49 ; Table Width (Inch): 9 ; Phase: 3
| Spindle Speed Control | Variable Speed Pulley |
| CNC Controller Brand | Acu-Rite |
| CNC Controller Model | G-2 |
| Table Length (Inch) | 49 |
| Table Width (Inch) | 9 |
| Phase | 3 |
| Longitudinal Travel (Inch) | 34 |
| Cross Travel (Decimal Inch) | 12.0000 |
| Knee Travel (Inch) | 14-1/2 |
| Maximum Spindle Speed (RPM) | 4200.00 |
| Minimum Spindle Speed (RPM) | 80.00 |
| Spindle Travel Length (Inch) | 5 |
| Spindle Taper Size | R8 |
| Quill Diameter (Inch) | 3-3/8 |
| Maximum Spindle To Column Distance (Decimal Inch) | 19.0000 |
| Table Load Capacity (Lb.) | 925.00 |
| Number of T-Slots | 3 |
| Left-Hand Head Tilt (Degrees) | 90.00 |
| Right-Hand Head Tilt (Degrees) | 90.00 |
| Forward Head Tilt (Degrees) | 45.00 |
| Backward Head Tilt (Degrees) | 45.00 |
| Ram Travel Length (Inch) | 13-3/8 |
| Horsepower (HP) | 5.00 |
| Voltage | 230/460 |
| Overall Length (Inch) | 66 |
| Overall Height (Inch) | 85 |
| Overall Depth (Inch) | 63 |
| Certification | CSA/CUS |
| Warranty | 2 Year |
