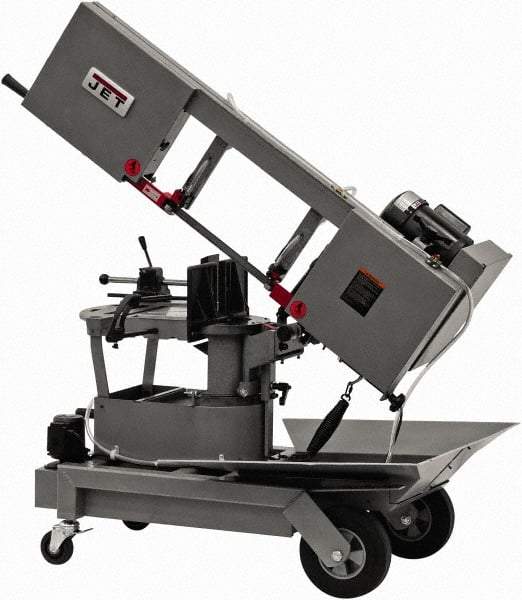

Jet - 8 x 9" Max Capacity, Manual Step Pulley Horizontal Bandsaw - 64, 132 & 247 SFPM Blade Speed, 115/230 Volts, 90°, 1 hp, 1 Phase
Item #: 48837066
Brand: Jet
Model #: 424463
Exact Tooling IR#: 04
Features and Benefits
Manual bandsaws are controlled by an operator. They manually load the material into the saw, measure lengths to cut and adjust stops.
Step pulleys are driven by a belt system that is manually changed to achieve a specific speed. These pulleys commonly feature 3 to 4 fixed speeds.
Single-phase refers to one phase line (coil) that connects to and runs voltage through the motor. Single phase lines are not as efficient as three-phase motors.
| Product Specifications | |
|---|---|
| Machine Style | Manual |
| Drive Type | Step Pulley |
| Angle of Rotation | 90 |
| Maximum Capacity (Rectangular) (Inch) | 8 x 9 |
| Maximum Capacity (Rounds) (Inch) | 10 |
| Phase | 1 |
| Voltage | 115/230 |
| Coolant System | No |
| Angular Cuts at 45 Degrees (Inch) | 8 x 5 (Rectangular) |
| Blade Width (Decimal Inch) | 1.0000 |
| Blade Speeds (SFPM) | 64; 132; 247 |
| Blade Speeds (m/min) | 19.5; 40; 75 |
| Blade Length (Feet) | 10.00 |
| Blade Thickness (Decimal Inch) | 0.0350 |
| Blade Guide Type | Pulleys |
| Blade Speeds (SFPM) | 64, 132, 247 |
| Includes | Built-in Protractor; Removable Chip Tray; Roller Stand |
| Horsepower (HP) | 1.00 |
| Base Width (Inch) | 27 |
| Base Depth (Inch) | 63 |
| Certification | CSA/CUS |
| Warranty | 2 Year |
