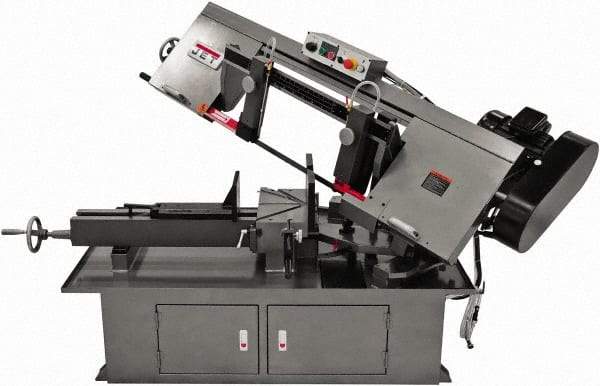

Jet - 10 x 17" Max Capacity, Manual Step Pulley Horizontal Bandsaw - 50, 125, 200 & 275 SFPM Blade Speed, 230 Volts, 60°, 2 hp, 1 Phase
Item #: 48837058
Brand: Jet
Model #: 413411
Exact Tooling IR#: 04
Features and Benefits
Manual bandsaws are controlled by an operator. They manually load the material into the saw, measure lengths to cut and adjust stops.
Step pulleys are driven by a belt system that is manually changed to achieve a specific speed. These pulleys commonly feature 3 to 4 fixed speeds.
Single-phase refers to one phase line (coil) that connects to and runs voltage through the motor. Single phase lines are not as efficient as three-phase motors.
| Product Specifications | |
|---|---|
| Machine Style | Manual |
| Drive Type | Step Pulley |
| Angle of Rotation | 60 |
| Maximum Capacity (Rectangular) (Inch) | 10 x 17 |
| Maximum Capacity (Rounds) (Inch) | 10 |
| Phase | 1 |
| Voltage | 230 |
| Coolant System | Yes |
| Angular Cuts at 45 Degrees (Inch) | 10 x 12 (Rectangular) |
| Blade Width (Decimal Inch) | 1.0000 |
| Angular Cuts at 60 Degrees (Inch) | 5-1/2 (Square) |
| Blade Speeds (SFPM) | 50; 125; 200; 275 |
| Blade Speeds (m/min) | 15.24; 38.1; 60.96; 83.82 |
| Blade Length (Feet) | 12.00 |
| Blade Thickness (Decimal Inch) | 0.0320 |
| Blade Guide Type | Bearings |
| Blade Speeds (SFPM) | 50, 125, 200, 275 |
| Horsepower (HP) | 2.00 |
| Base Width (Inch) | 36 |
| Base Depth (Inch) | 79 |
| Certification | CSA/CUS |
| Warranty | 2 Year |
