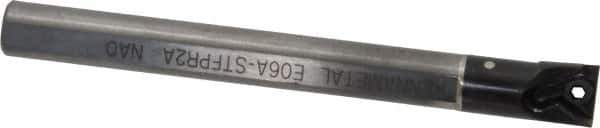

Kennametal - 12.19mm Min Bore Diam, 95.25mm OAL, 3/8" Shank Diam, E-ASTFP Indexable Boring Bar - TP.. 41.. Insert, Screw Holding Method
Item #: 48594204
Brand: Kennametal
Model #: 1152773
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | E-ASTFP |
| Series | Screw-On |
| Minimum Bore Diameter (mm) | 12.19 |
| Minimum Bore Diameter (Decimal Inch) | 0.4799 |
| Hand of Holder | Right Hand |
| Overall Length (mm) | 95.25 |
| Overall Length (Decimal Inch) | 3.7500 |
| Shank Diameter (mm) | 9.53 |
| Shank Diameter (Inch) | 3/8 |
| Shank Diameter (Decimal Inch) | 0.3750 |
| Insert Compatibility | TP.. 41.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Center to Cutting Edge (Decimal Inch) | 0.2500 |
| Coolant Hole Diameter (Decimal Inch) | 0.1250 |
| Toolholder Material | Carbide |
