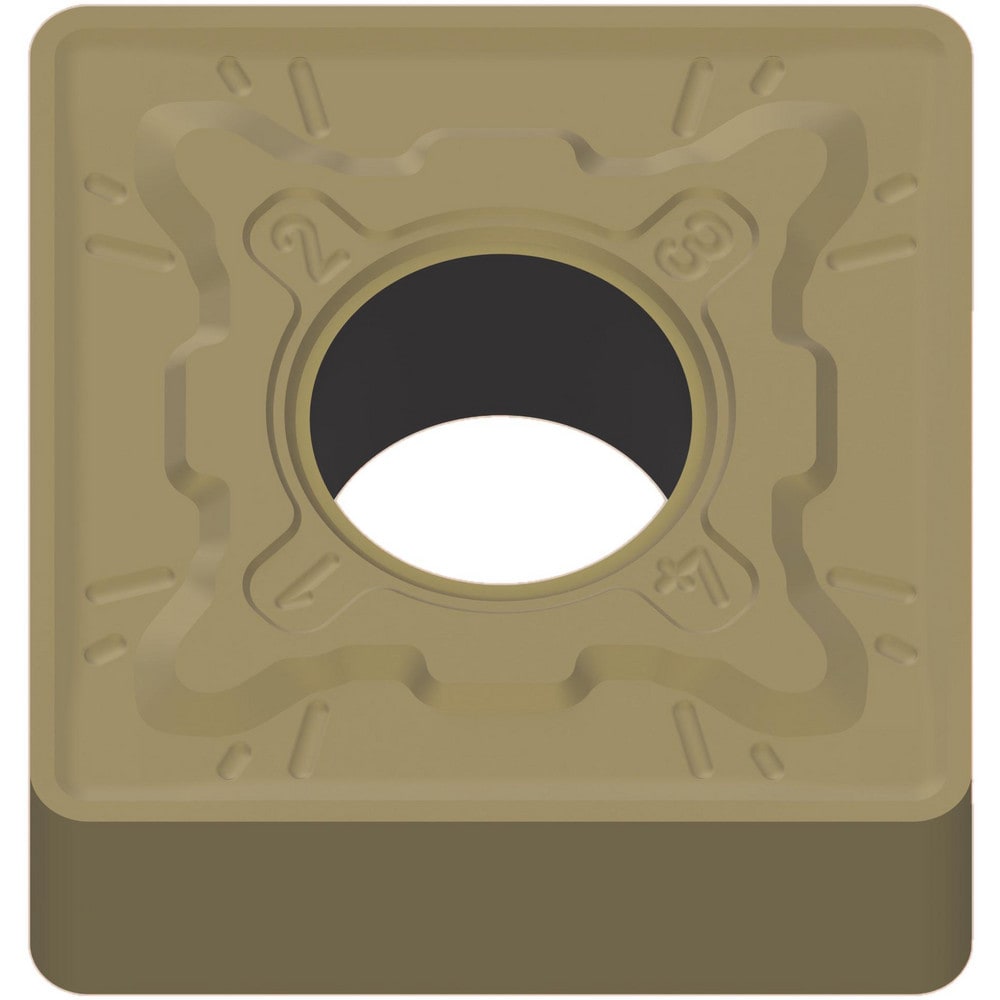

Turning Insert: SNMG644RP MC6115, Carbide
Item #: 03939576
Brand: Mitsubishi
Model #: 10624166
Product Specifications
| ANSI Insert Code | SNMG644 |
| ISO Insert Code | SNMG190616 |
| Relief Angle | 0 |
| Insert Style | SNMG |
| Corner Radius (mm) | 1.60 |
| Corner Radius (Inch) | 1/16 |
| Corner Radius (Decimal Inch) | 0.0625 |
| Included Angle | 90 |
| Manufacturer Grade | MC6115 |
| Coating/Finish | CVD |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/4 |
| Insert Thickness | 6.35 |
| Insert Thickness (Decimal Inch) | 0.2500 |
| Inscribed Circle (Decimal Inch) | 0.7500 |
| Inscribed Circle (Inch) | 3/4 |
| Inscribed Circle (mm) | 19.05 |
| Insert Material | Carbide |
| Insert Shape | S - Square |
| Chip Breaker Operation | Medium Machining; Roughing |
| Grade Characteristics | Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance | Negative |
| Number Of Cutting Edges | 8 |
| Insert Shape Code | S |
| Clearance Code | N |
| Tolerance Code | M |
| Primary Workpiece Material Code | P |
| Chip Breaker | RP |
| ANSI Size Code | 644 |
| ISO Size Code | 190616 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 6 |
