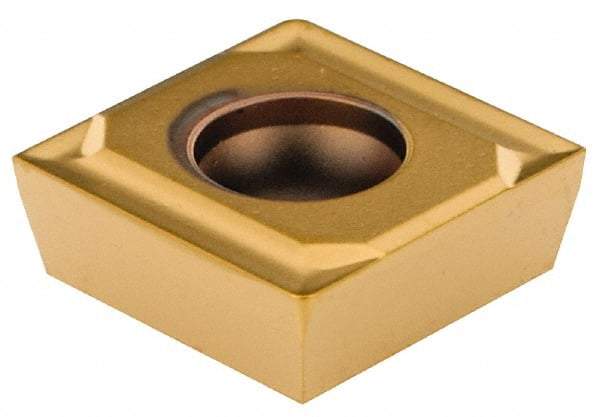

Kennametal - SPHX090304 R20 Grade KC7140 Carbide Indexable Drill Insert - TiN/TiCN Finish, Square, 3/8" Inscribed Circle
Item #: 48479638
Brand: Kennametal
Model #: 1928671
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
TiN/TiCN is a multi-layered coating designed to increase tool life. It is commonly used at high cutting speeds for smoothing and finishing of the workpiece.
| Product Specifications | |
|---|---|
| Insert Style | SPHX |
| Insert Size | 090304 |
| Material | Carbide |
| Material Grade | C5/C6 |
| Manufacturer's Grade | KC7140 |
| Inscribed Circle (mm) | 9.53 |
| Inscribed Circle (Decimal Inch) | 0.3752 |
| Thickness (mm) | 3.18 |
| Thickness (Decimal Inch) | 0.1252 |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Shape | Square |
| Hole Diameter (mm) | 3.50 |
| Hole Diameter (Decimal Inch) | 0.1378 |
| Relief Angle | 11 |
| Included Angle | 90 |
| Coating | TiN/TiCN |
| Coating Process | PVD |
| Chipbreaker | R20 |
