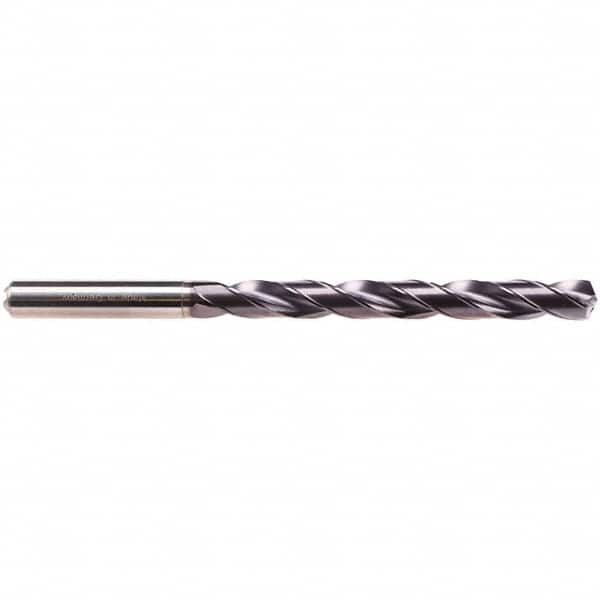

Taper Length Drill Bit: 0.5433″ Dia, 135 ° TiAlN Finish, RH Cut, Spiral Flute, Straight Shank, Series EF-DRILL
Item #: 47939103
Brand: Emuge
Model #: TA223344.1380
Product Specifications
| Drill Bit Size (mm) | 13.80 |
| Tool Material | Solid Carbide |
| Coating/Finish | TiAlN |
| Flute Length (mm) | 140.00 |
| Shank Type | Straight |
| Flute Type | Spiral |
| Coolant Through | Yes |
| Drill Point Angle (Degrees) | 135 |
| Overall Length (mm) | 186.00 |
| Shank Diameter (mm) | 14.00 |
| Drill Bit Size (Decimal Inch) | 0.5433 |
| Flute Length x Diamter Ratio | 8xD |
| Cutting Direction | Right Hand |
| Series | EF-DRILL |
| Flute Length X Diameter Ratio | 8xD |
| Web Thinning | Web-Thinned |
| Specification Number | DIN 6535 (Shank) |
| Additional Information | Double Margin Flute |
| Material Grade | Sub Micrograin |
