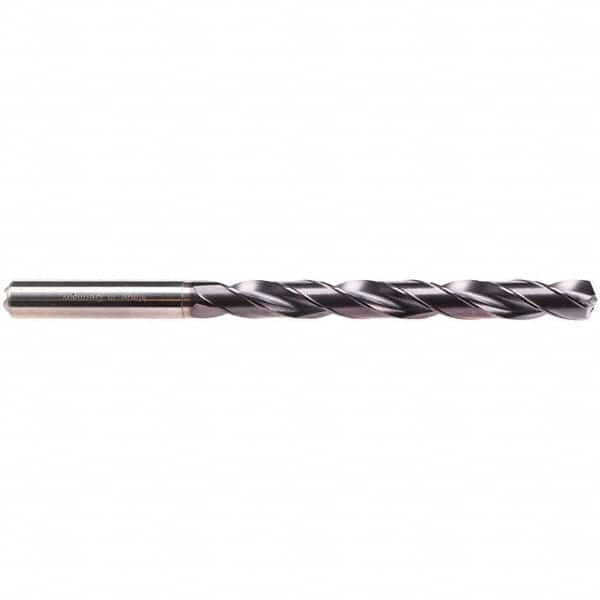

Taper Length Drill Bit: 0.6043″ Dia, 135 ° TiAlN Finish, RH Cut, Spiral Flute, Straight Shank, Series EF-DRILL
Item #: 47939012
Brand: Emuge
Model #: TA223344.1535
Product Specifications
| Drill Bit Size (mm) | 15.35 |
| Tool Material | Solid Carbide |
| Coating/Finish | TiAlN |
| Flute Length (mm) | 160.00 |
| Shank Type | Straight |
| Flute Type | Spiral |
| Coolant Through | Yes |
| Drill Point Angle (Degrees) | 135 |
| Overall Length (mm) | 209.00 |
| Shank Diameter (mm) | 16.00 |
| Drill Bit Size (Decimal Inch) | 0.6043 |
| Flute Length x Diamter Ratio | 8xD |
| Cutting Direction | Right Hand |
| Series | EF-DRILL |
| Flute Length X Diameter Ratio | 8xD |
| Web Thinning | Web-Thinned |
| Specification Number | DIN 6535 (Shank) |
| Additional Information | Double Margin Flute |
| Material Grade | Sub Micrograin |
