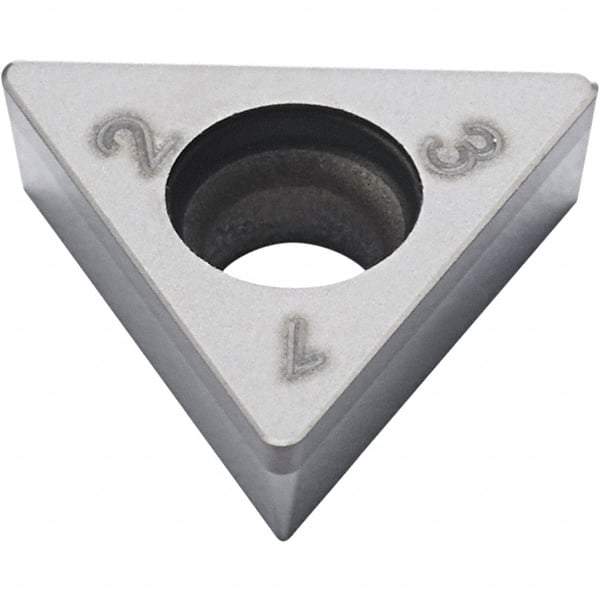

Seco - TCGW1.81.5 Grade CBN010 PCBN Turning Insert - Uncoated, 60° Triangle, 0.016" Corner Radius
Item #: 47902564
Brand: Seco
Model #: 94743
Exact Tooling IR#: 04
Features and Benefits
Polycrystalline cubic boron nitride (PCBN) is similar to diamond. It is commonly used on hardened steels, cast iron, carbide, nickel alloys and hard ferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | TCGW |
| Insert Size | 1.81.5 |
| Material | PCBN |
| Corner Radius (Decimal Inch) | 0.0160 |
| Manufacturer's Grade | CBN010 |
| Coating | Uncoated |
| Material Grade | Micrograin |
| Hole Diameter (Decimal Inch) | 0.1000 |
| Relief Angle | 7 |
| Primary Workpiece Material | H |
| Included Angle | 60 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | Secomax |
| Insert Holding Method | Screw |
| Cutting Edge Style | Chamfered & Honed |
| FullRadius | No |
| MultiUseTool | Yes |
| Shape | Triangle |
