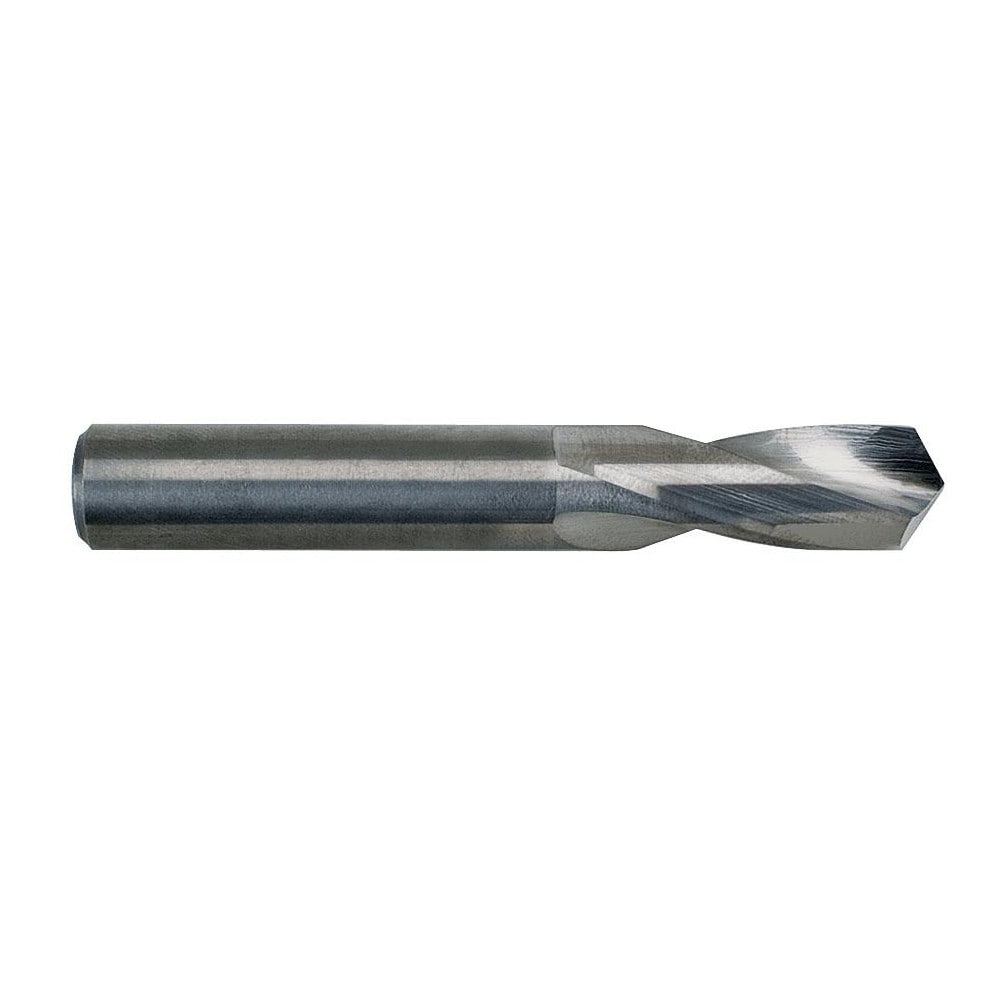

Screw Machine Length Drill Bit: 3.10 mm Dia, 118 deg Point, Solid Carbide
Item #: 03260924
Brand: M.A. Ford
Model #: 22612200
Product Specifications
| Drill Bit Size (mm) | 3.10 |
| Drill Bit Size (Decimal Inch) | 0.1220 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Bright/Uncoated |
| Number Of Flutes | 2 |
| Spiral Type | Regular |
| Flute Type | Regular Spiral |
| Drill Point Angle | 118 |
| Coolant Through | No |
| Primary Workpiece Material | Aluminum & Non-Ferrous; Stainless Steel; Cast Iron; Steel |
| Point Type | 4 Facet |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 0.1220 |
| Overall Length (mm) | 49.00 |
| Overall Length (Decimal Inch) | 1.9291 |
| Shank Diameter (mm) | 3.10 |
| Series | 226 |
| Proprietary Coating/Finish | Bright/Uncoated |
| Drill Length Type | Short |
| Shank Length (Decimal Inch) | 1.2204 |
| Shank Length (mm) | 31.00 |
| Flute By Diameter Ratio | 3xD |
| Drill Bit Diameter Tolerance | +0.000 to -0.013 mm |
| Flute Length (Decimal Inch) | 0.7087 |
| Flute Length (mm) | 18.00 |
| Drill Bit Size Range (Decimal Inch) | 0.1000 to 0.1500 |
| UNSPSC Code | 23241635 |
