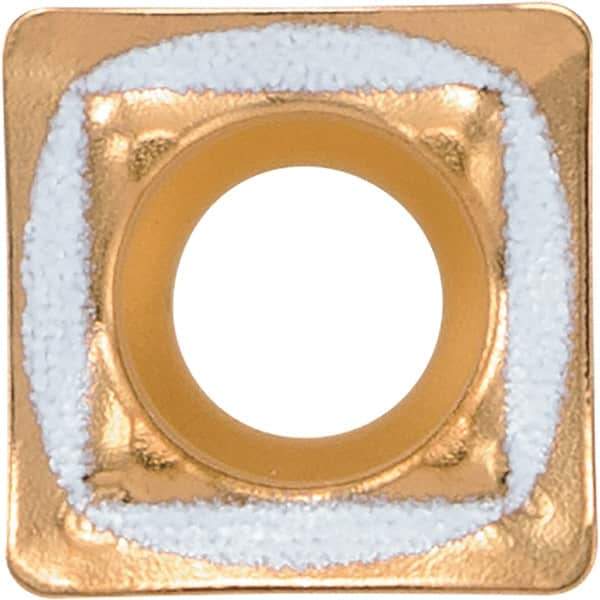

Kyocera - SCMT040205 GM-E Grade PR1225 Carbide Indexable Drill Insert - Megacoat Finish, Square, 4.8mm Inscribed Circle
Item #: 47590088
Brand: Kyocera
Model #: 8858433
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
MEGACOAT is a high strength super micro-grain substrate designed for superior hardness, toughness and heat resistance. It offers good surface smoothness and is ideal for machining steel and stainless steel.
| Product Specifications | |
|---|---|
| Insert Style | SCMT |
| Insert Size | 040205 |
| Material | Carbide |
| Manufacturer's Grade | PR1225 |
| Inscribed Circle (mm) | 4.80 |
| Thickness (mm) | 2.20 |
| Corner Radius (mm) | 0.50 |
| Shape | Square |
| Hole Diameter (mm) | 2.40 |
| Relief Angle | 7 |
| Included Angle | 90 |
| Coating | Megacoat |
| Coating Process | PVD |
| Chipbreaker | GM-E |
