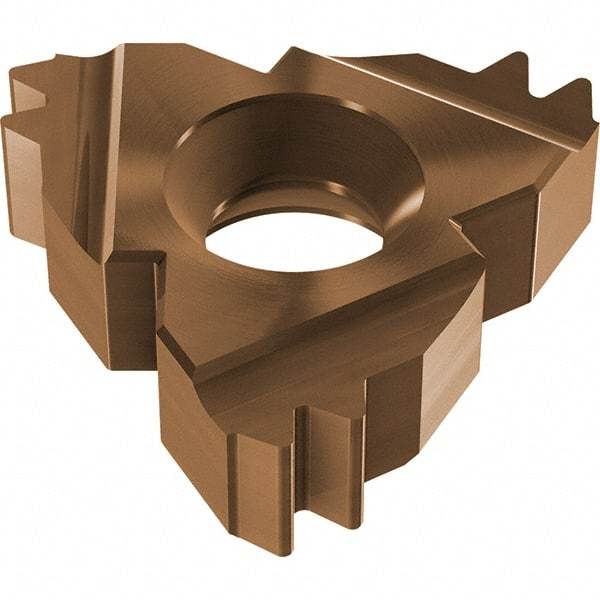

Vargus - 4FIR Internal Right Hand 10 APIRD Laydown Threading Insert - Grade VRX, AlTiN Coated Carbide
Item #: 47546171
Brand: Vargus
Model #: 070-00073
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | 4FIR |
| Insert Hand | Right Hand |
| Thread Type | Internal |
| Thread Standard | APIRD |
| Material Grade | Micrograin |
| Manufacturer's Grade | VRX |
| Threads Per Inch | 10 |
| Inscribed Circle (Decimal Inch) | 0.5240 |
| Thickness (Decimal Inch) | 0.2047 |
| Thickness (mm) | 5.20 |
| Included Angle of Threading Tip | 60 |
| Coating | AlTiN |
| Coating Process | PVD |
| Number of Teeth Per Side | 2 |
| Series | F Style |
