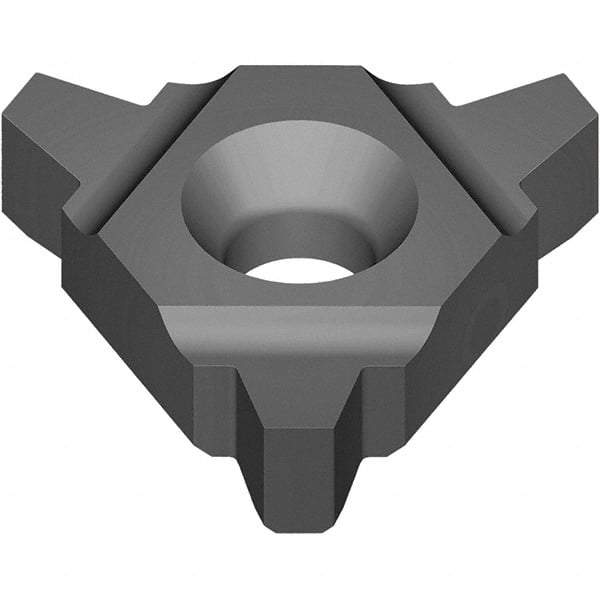

Vargus - 4UIR Internal Left & Right Hand TR Laydown Threading Insert - Grade VK2, Uncoated Coated Carbide
Item #: 47541339
Brand: Vargus
Model #: 022-00203
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | 4UIR |
| Insert Hand | Left Hand, Right Hand |
| Thread Type | Internal |
| Thread Standard | TR |
| Material Grade | Micrograin |
| Manufacturer's Grade | VK2 |
| Pitch (mm) | 7 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (Decimal Inch) | 0.1874 |
| Thickness (mm) | 4.76 |
| Included Angle of Threading Tip | 30 |
| Coating | Uncoated |
| Coating Process | PVD |
| Series | U Style |
