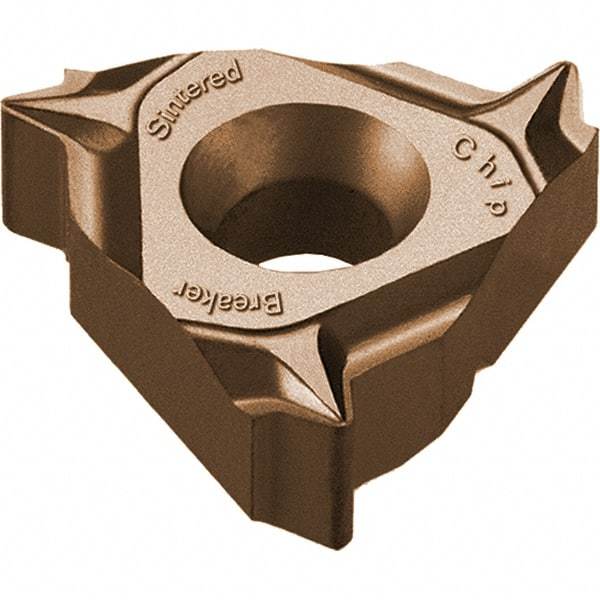

Vargus - 2JIR Internal Right Hand 18 UN Laydown Threading Insert - Grade VRX, AlTiN Coated Carbide
Item #: 47539150
Brand: Vargus
Model #: 021-07462
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | 2JIR |
| Insert Hand | Right Hand |
| Thread Type | Internal |
| Thread Standard | UN |
| Material Grade | Micrograin |
| Manufacturer's Grade | VRX |
| Threads Per Inch | 18 |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Thickness (Decimal Inch) | 0.1248 |
| Thickness (mm) | 3.17 |
| Included Angle of Threading Tip | 60 |
| Coating | AlTiN |
| Coating Process | PVD |
| Series | Standard |
