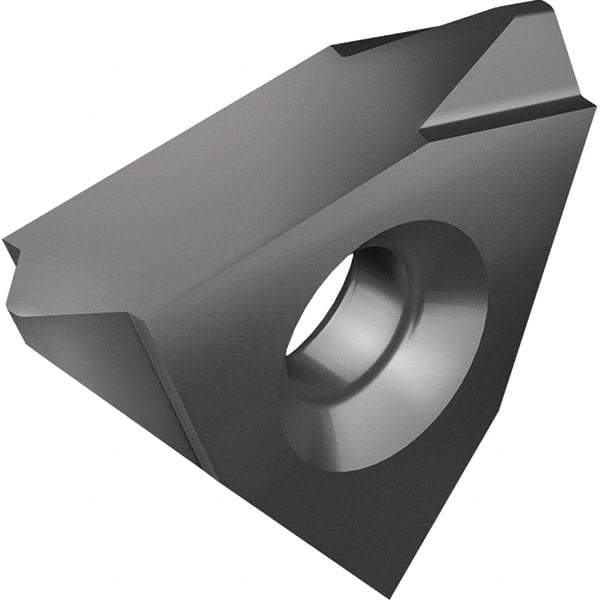

Vargus - TNEC55 External Right Hand 3.5 H90 Laydown Threading Insert - Grade VTXP, Uncoated Coated Carbide, 15.88mm Inscribed Circle
Item #: 47529391
Brand: Vargus
Model #: 060-00062
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | TNEC55 |
| Insert Hand | Right Hand |
| Thread Type | External |
| Thread Standard | H90 |
| Material Grade | Micrograin |
| Manufacturer's Grade | VTXP |
| Threads Per Inch | 3.5 |
| Inscribed Circle (mm) | 15.88 |
| Inscribed Circle (Decimal Inch) | 0.6250 |
| Thickness (Decimal Inch) | 0.2500 |
| Thickness (mm) | 6.35 |
| Included Angle of Threading Tip | 90 |
| Coating | Uncoated |
| Coating Process | PVD |
| Series | CNGA |
