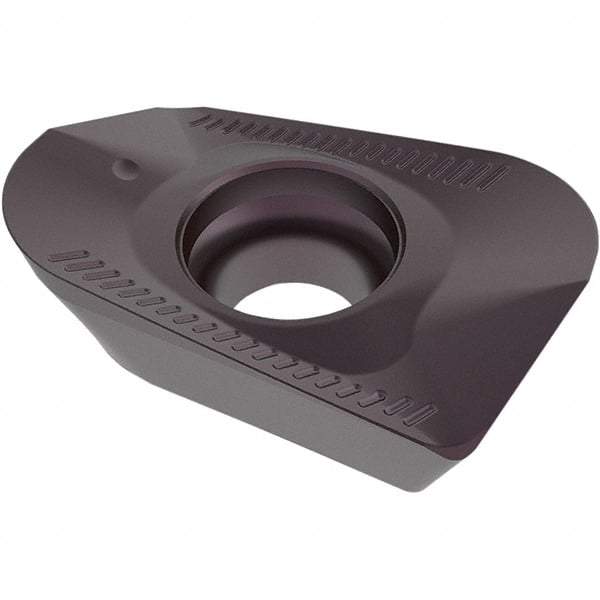

Seco - XOMX120431 ME08 Grade MP2050 Carbide Milling Insert - TiAlN/TiSiN Finish, 5.07mm Thick, 3.1mm Corner Radius
Item #: 47485289
Brand: Seco
Model #: 03189056
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | XOMX |
| Insert Size | 120431 |
| Material | Carbide |
| Material Grade | C3/C4 |
| Manufacturer's Grade | MP2050 |
| Coating | TiAlN/TiSiN |
| Width (mm) | 8.20 |
| Width (Decimal Inch) | 0.3200 |
| Length (mm) | 11.60 |
| Length (Decimal Inch) | 0.4567 |
| Thickness (mm) | 5.07 |
| Thickness (Decimal Inch) | 0.2000 |
| Corner Radius (Decimal Inch) | 0.1200 |
| Corner Radius (mm) | 3.10 |
| Hole Diameter (mm) | 3.90 |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Rake Angle | 20 |
| Rake | Neutral |
| Coating Process | PVD |
| Included Angle | 90 |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| Chipbreaker | ME08 |
