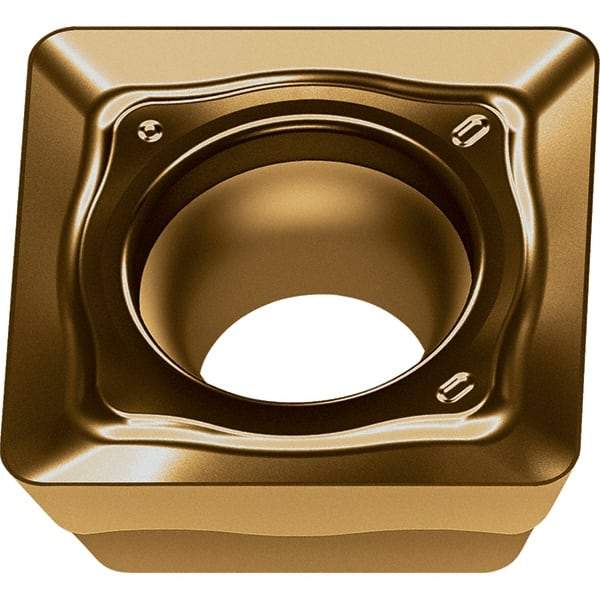

Walter - F57 Grade WSM35S Milling Insert - 2.78mm Thick, 6.35mm Inscribed Circle, 1.2mm Corner Radius
Item #: 47328307
Brand: Walter
Model #: 6840028
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Manufacturer's Grade | WSM35S |
| Length (mm) | 6.35 |
| Length (Decimal Inch) | 0.2500 |
| Inscribed Circle (mm) | 6.35 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Thickness (mm) | 2.78 |
| Thickness (Decimal Inch) | 0.1090 |
| Corner Radius (Decimal Inch) | 0.0470 |
| Corner Radius (mm) | 1.20 |
| Hole Diameter (mm) | 2.50 |
| Hole Diameter (Decimal Inch) | 0.0980 |
| Relief Angle | 15.000 |
| Coating Process | PVD |
| Insert Hand | Neutral |
| Chipbreaker | F57 |
| Maximum Depth of Cut (mm) | 6.35 |
| Maximum Depth of Cut (Decimal Inch) | 0.2500 |
| Manufacturers Catalog Number | SDMT06T212-F57 WSM35S |
